Glove Compartment: Service and Repair

Description:

Remove or Disconnect
1. Open I/P compartment door.

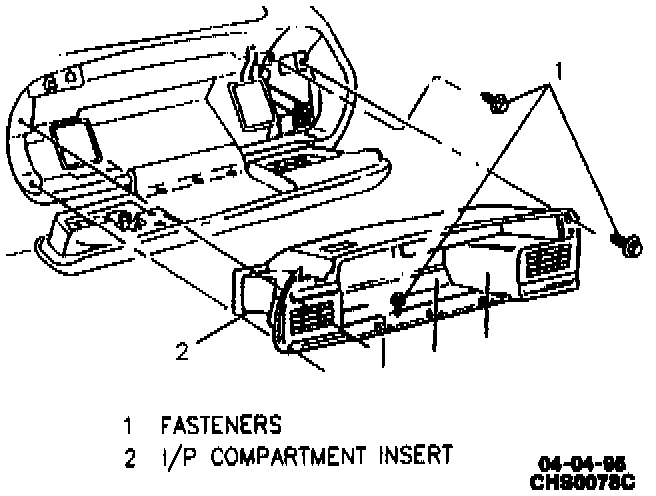

2. I/P compartment insert fasteners and insert by pulling rearward.
3. I/P compartment door hinge fasteners to I/P.
4. I/P compartment door.

Install or Connect
1. I/P compartment door hinge to I/P
2. I/P compartment door hinge fasteners to I/P.

Tighten
^ Fasteners to 1.9 Nm (17 lb. in.).

3. I/P compartment insert fasteners after positioning insert.

Tighten
^ Fasteners to 1.9 Nm (17 lb. in.).
