Table F Traction Active Indicator Inoperative No DTC(S) Set

"Traction Active" Indicator Inoperative With No DTC(s) Set:

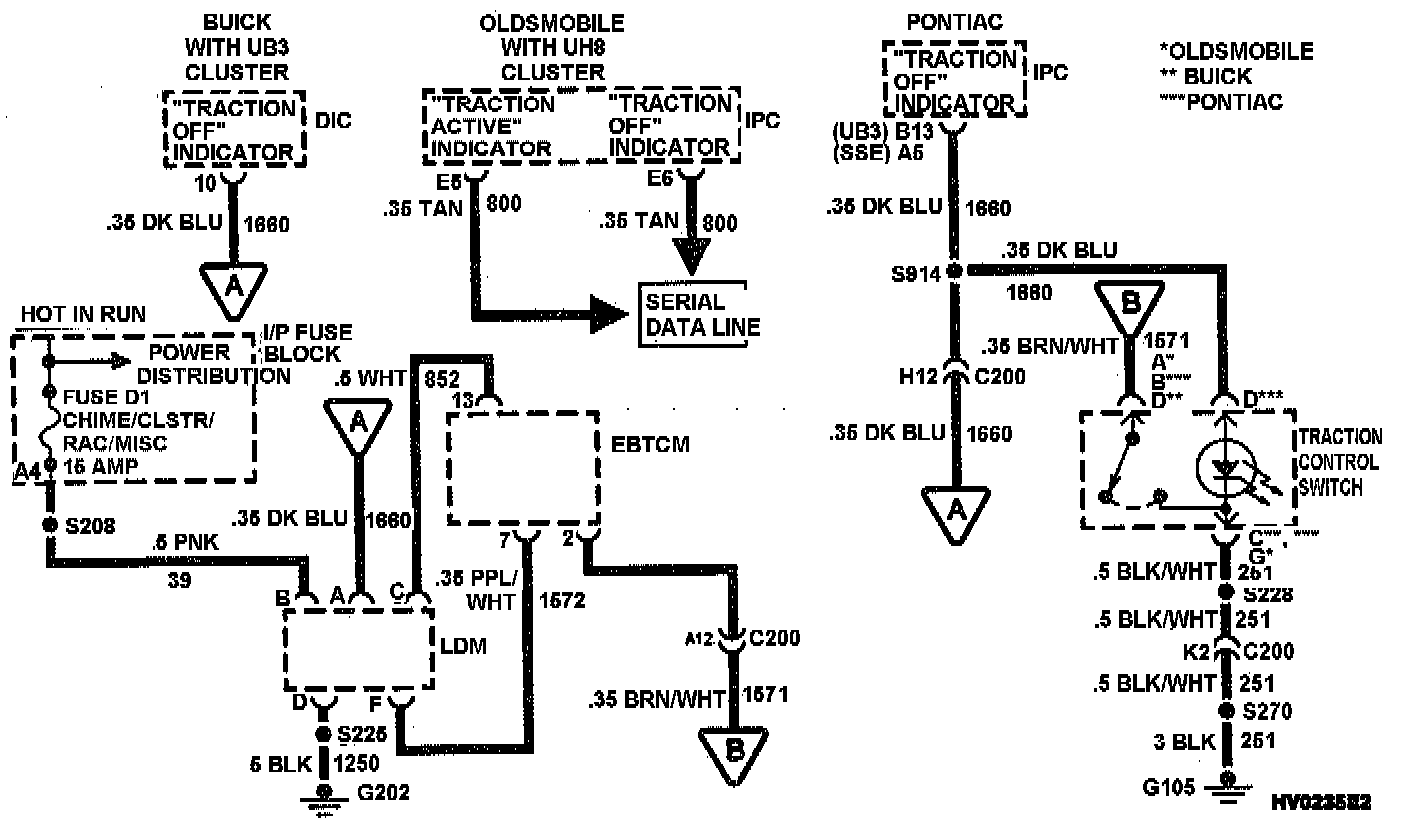

"Traction Active" Indicator Schematic:

DIAGNOSTIC AIDS
- It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
- If the battery feed to the IPC indicators is open then more than one Indicator bulb will be inoperative.

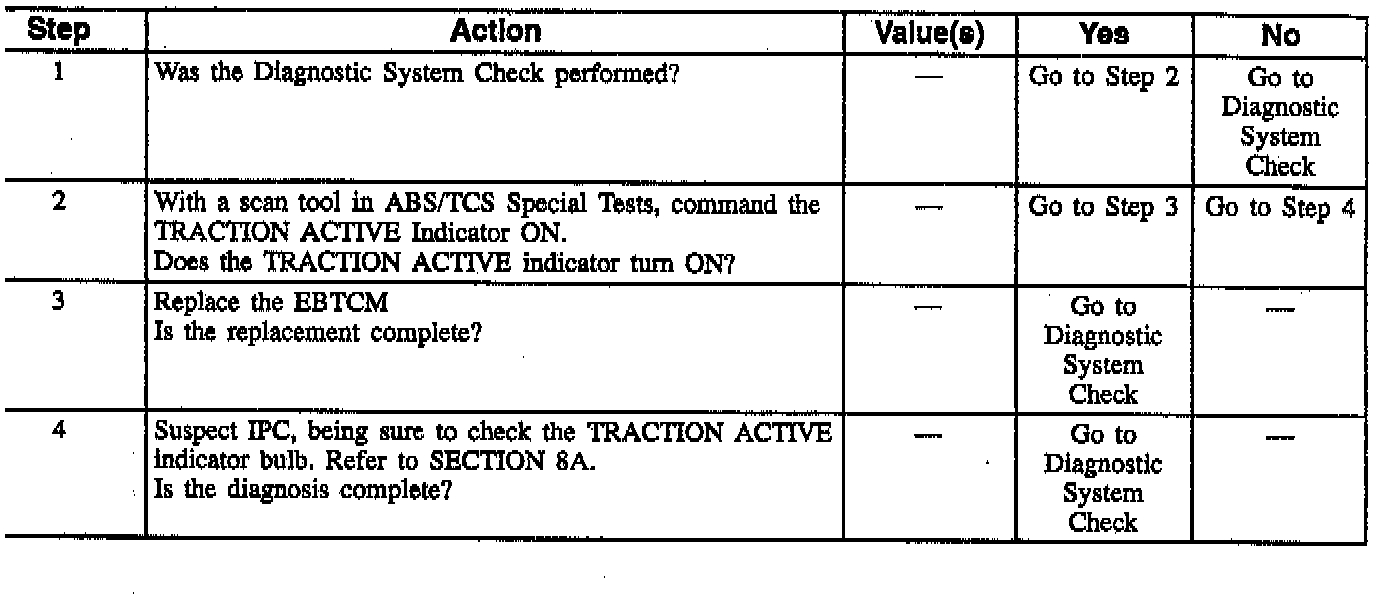

TABLE TEST DESCRIPTION
The number below refer to step numbers on the diagnostic table.
2. Checks if the IPC can turn the Indicator "ON"
