Enabling the SIR System

INSTALL OR CONNECT
^ Remove the key from the ignition switch.

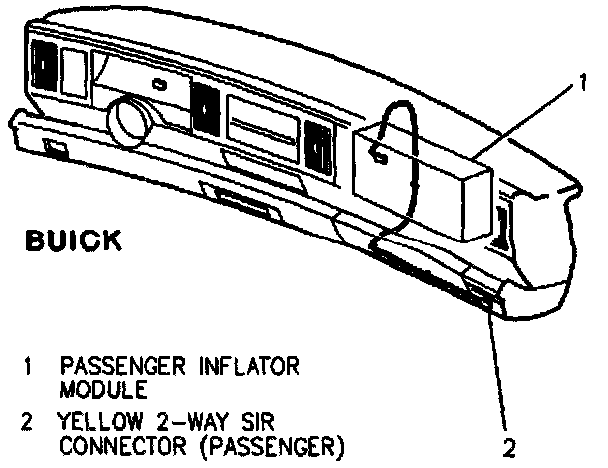

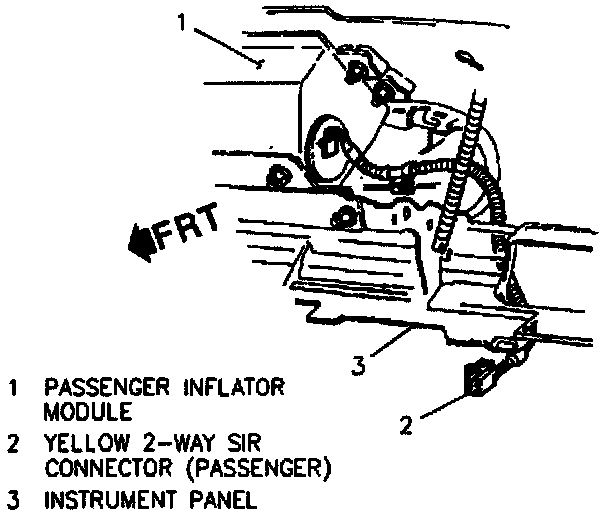

1. The yellow 2-way connector and the CPA to the inflatable restraint I/P module pigtail.

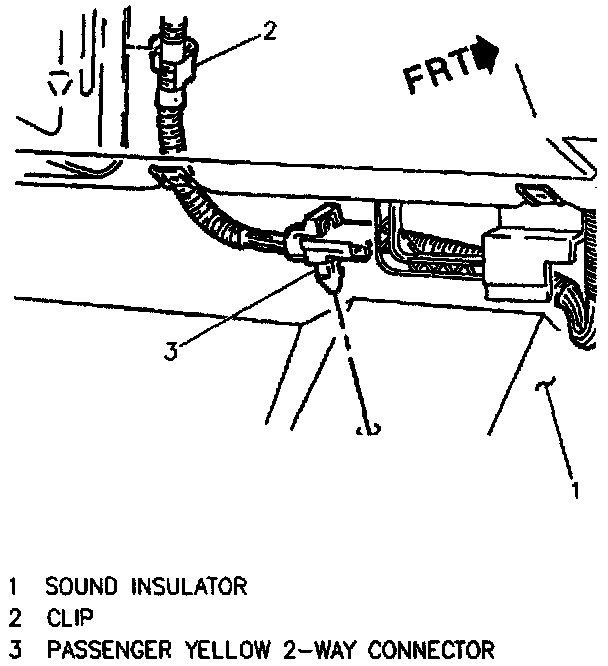

2. The sound insulator - RH.

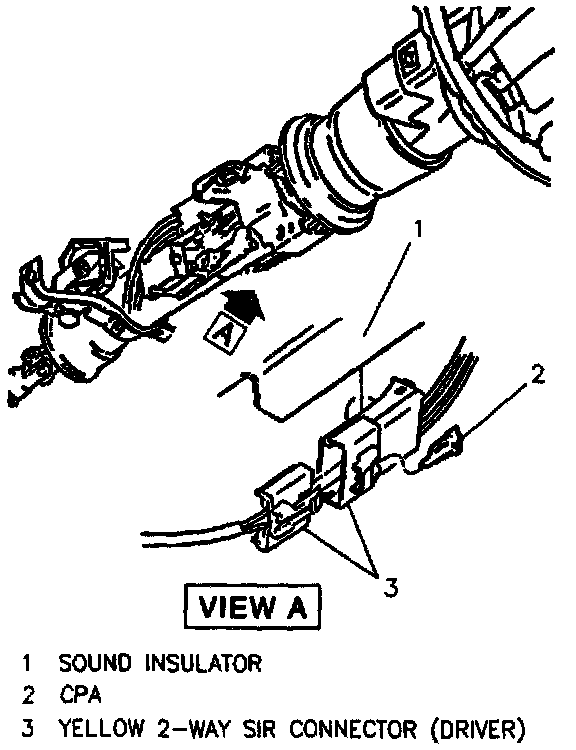

3. The yellow 2-way connector and the CPA near the base of the steering column.
4. The sound insulator - LH.
5. The AIR BAG #1C Fuse to the I/P fuse block.

Staying well away from both air. bags, turn the ignition switch to the RUN position. Verify that the AIR BAG warning lamp flashes seven times and then stays OFF If the AIR BAG warning lamp does not operate as described, perform the SIR DIAGNOSTIC SYSTEM CHECK. SIR Diagnostic System Check
