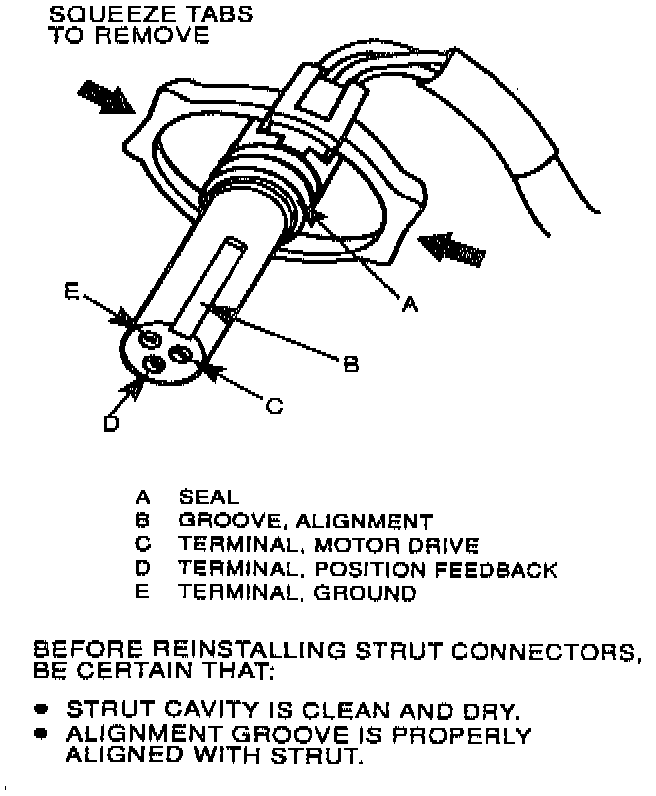

Strut Connectors

In order to maintain the sealing integrity of the connector, strut connectors should be disconnected from the strut only when necessary. When strut connectors are removed for service or diagnosis, before reconnecting, be certain that:
^ The connector cavity in the strut is clean and dry.
^ The connector alignment groove is properly aligned with the strut.
