Torque Converter Assemble

^ Tools Required:
- J 36850 Assembly Lubricant (or equivalent)
- Or Equivalent

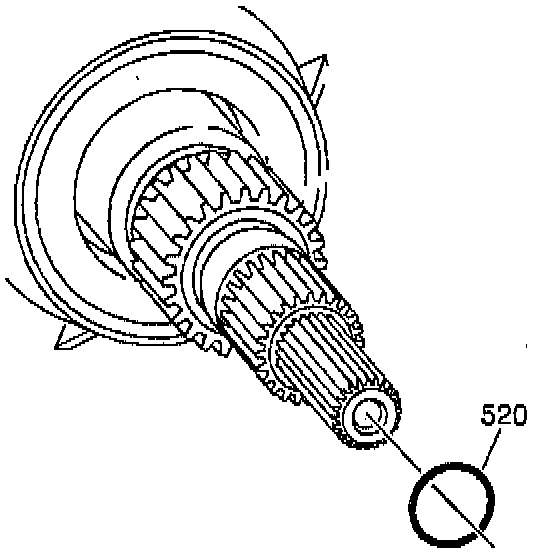

1. Apply J 36850 or equivalent to a new turbine shaft O-ring seal (520).
2. Apply J 36850 or equivalent to the turbine shaft splines (518).
3. Affix the turbine shaft O-ring seal (520) onto the turbine shaft (518).

CAUTION: The torque converter weighs approximately 65 lbs. Personal Injury may result If you lift the torque converter improperly.

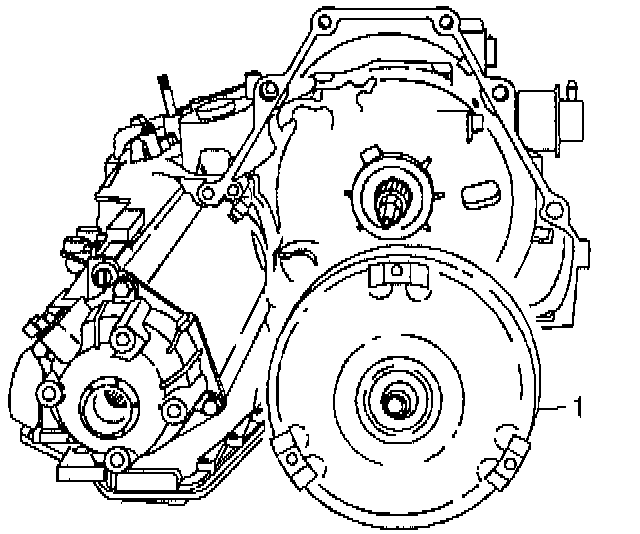

4. Install the torque converter assembly (1).
