Connector Views
EBCM 24-Way F Micro-Pack 100 Series Connector C1:

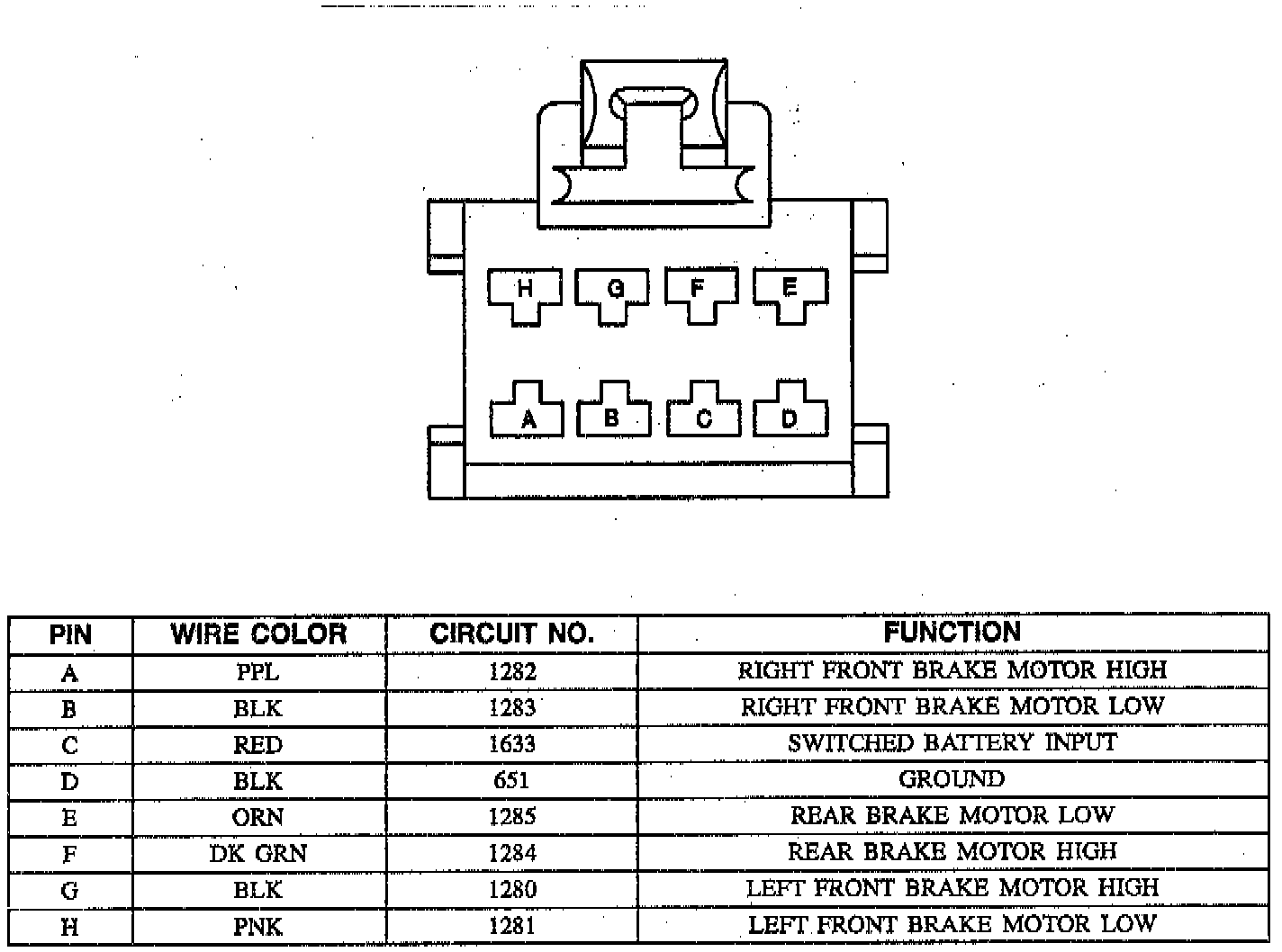

EBCM 8-Way F Metri-Pack 280 Series Connector C2:
