Home
>>
Pontiac
>>
1997
>>
Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Connector Views
>>
Engine Harness to Forward Lamp Harness
Engine Harness to Forward Lamp Harness

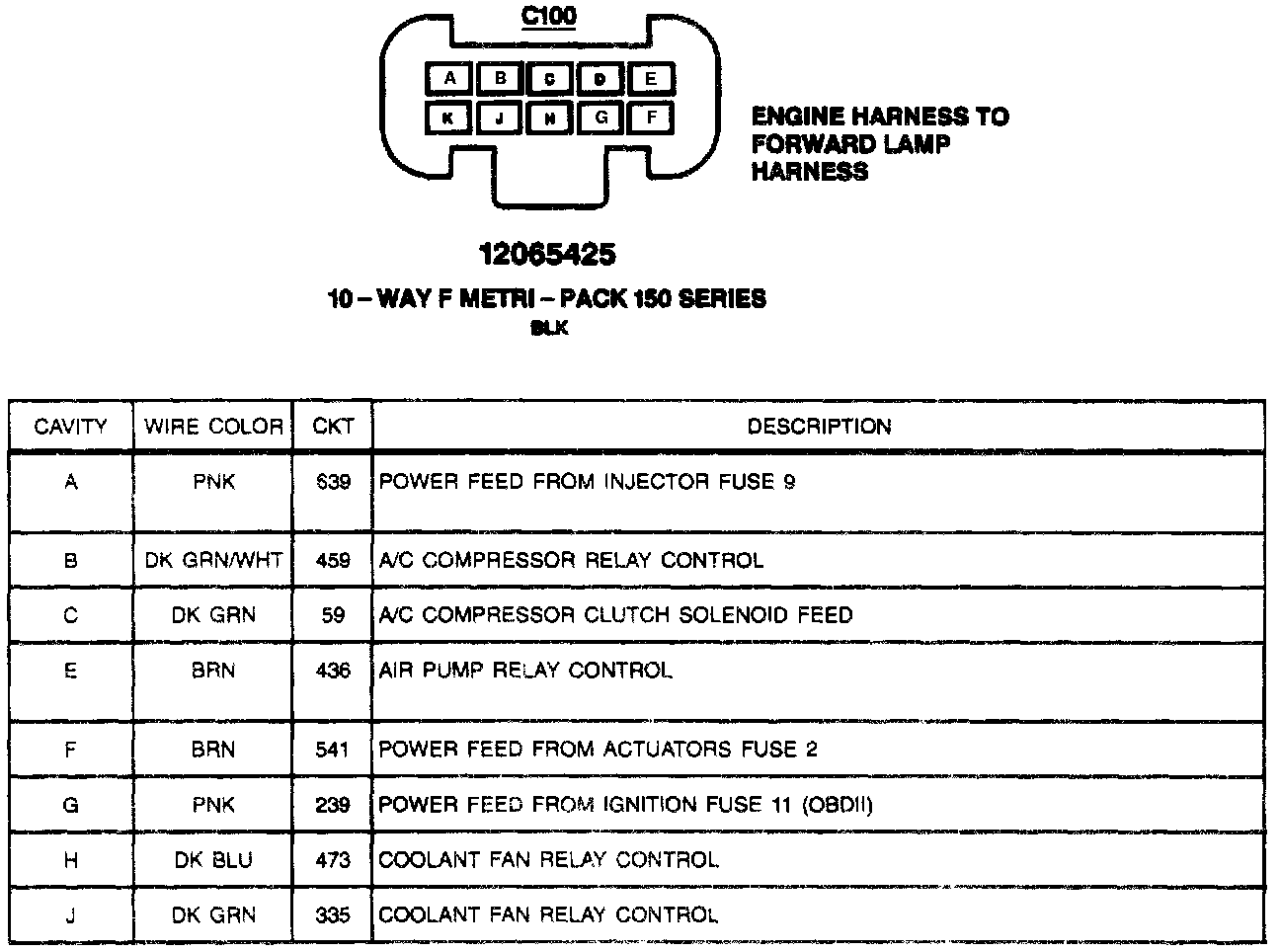

Engine Harness To Forward Lamp Harness: C100:

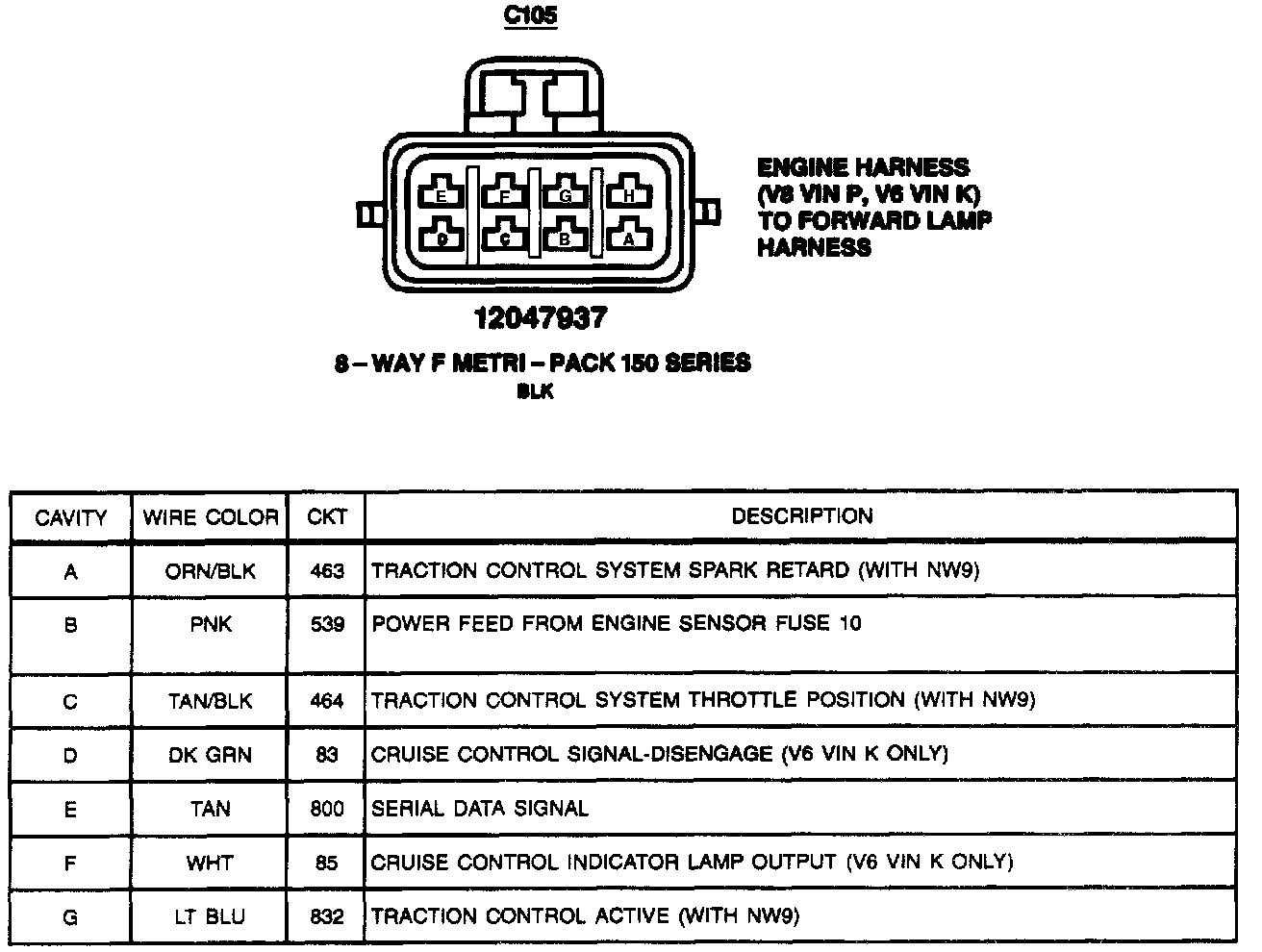

Engine Harness To Forward Lamp Harness: C105:
