Sub Section B - Housing Cover - Floor Shift

^ Tools Required:
- J 23653-C Lock Plate Compressor
- Or Equivalent

Important: Before doing any service procedures, removal of Inflator Module and Steering Wheel is needed. Refer to "Steering Wheel And Column On-Vehicle Service."

Important: Remove only those components necessary to do repairs.



























REMOVE OR DISCONNECT
1. Do all steps, under "REMOVE OR DISCONNECT", Sub Section A.
2. Housing cover end cap (25).

Important:
^ Remove cruise control and multi-function lever connectors from base plate (24) and disconnect.
^ Remove multi-function lever. Refer to "Steering Wheel And Column On-Vehicle Service."

3. Cover screws (15).
4. Tilt lever. Refer to "Steering Wheel And Column On-Vehicle Service."
5. Lock housing cover assembly (19).
6. Base plate (24) and dimmer switch rod actuator (21).

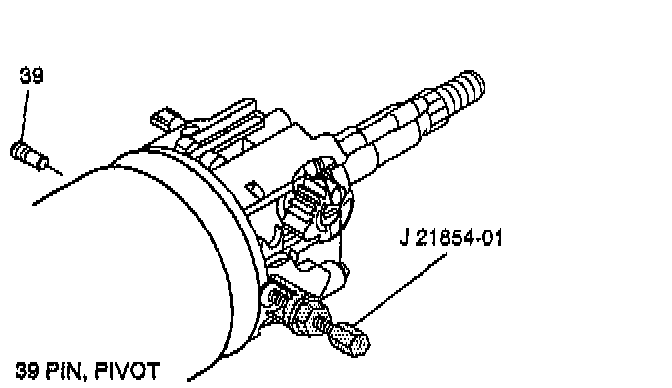

7. Switch actuator pivot pin (22).

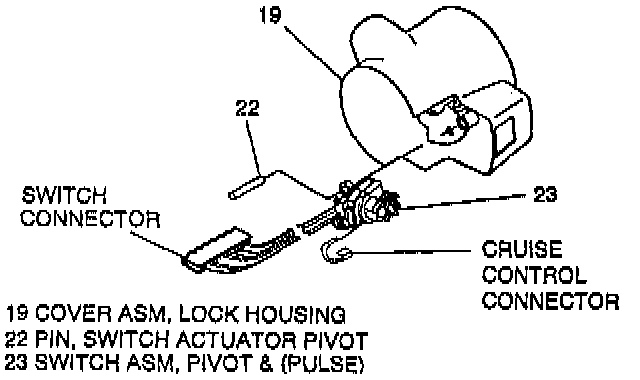

8. Pivot & (pulse) switch assembly (23).
^ Let switch hang freely if removal is not needed.
^ To remove switch (23):
A. Pivot & (pulse) switch connector from bulkhead connector.
B. Gently pull wire harness through column.
9. Spring retainer (52).
^ Using a cross recess head screwdriver, push retainer down and turn counterclockwise to release.
10. Spring (51) and spring guide (50).

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the correct location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

NOTICE: Ensure all fasteners are securely seated before applying needed torque. Failure to do so may result in component damage or malfunctioning of steering column.

1. Spring guide (50) and spring (51).
^ Lubricate with lithium grease.
2. Spring retainer (52).
^ Using a cross recess screwdriver push retainer down and turn clockwise to lock in place.
3. Pivot & (pulse) switch assembly (23) to lock housing cover assembly (19).
4. Switch actuator pivot pin (22) to switch (23) and cover (19).
5. Pivot & (pulse) switch wire harness through steering column.
^ Switch connector to bulkhead connector.
6. Dimmer switch rod actuator (21) to base plate (24).
^ Lubricate with lithium grease.
7. Base plate (24) to lock housing cover assembly (19).
Bottom edge of dimmer switch rod actuator (21) must rest on bend in dimmer switch rod (77).
8. Lock housing cover assembly (19).
9. Screws (15). Tighten screw in 12 o'clock position first, screw in 8 o'clock position second, and screw in 3 o'clock position third.
^ Tighten screws (15) in same order to 9.0 Nm (80 lb in).
10. Install multi-function lever. Refer to "Steering Wheel And Column On-Vehicle Service."
11. Plug multi-function lever and cruise control connectors together and mount on base plate (24).
12. Housing cover end cap (25).
13. Do all steps, under "INSTALL OR CONNECT", Sub Section A.
