Front Wheel Hub

FRONT HUB/BEARING





REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Special security wheel lock nut, if equipped.
3. Tire and wheel.
4. Brake caliper.
5. Brake rotor.
6. Wheel speed sensor electrical connector and move aside.

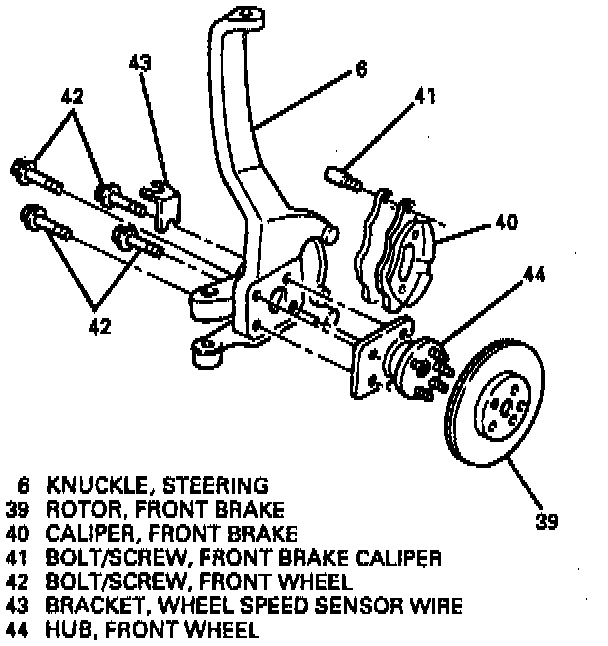

7. Bolts/screws (42) from hub (44).
8. Pull hub (44) from spindle.

INSTALL OR CONNECT
1. Position hub (44) to spindle.
2. Bolts/screws (42).
^ Tighten bolts/screws (42) to 86 Nm (63 lb ft).

Important: Make sure wheel speed sensor electrical connector is reconnected to wheel speed sensor wire bracket (43) and wheel speed sensor or wires could be damaged.

3. Wheel speed sensor electrical connector.
4. Brake rotor.
5. Brake caliper.
6. Tire and wheel.
7. Special security wheel lock nut, if equipped.
8. Lower vehicle.
