Fillpipe Restrictor: Description and Operation

Fuel Tank Filler Pipe:

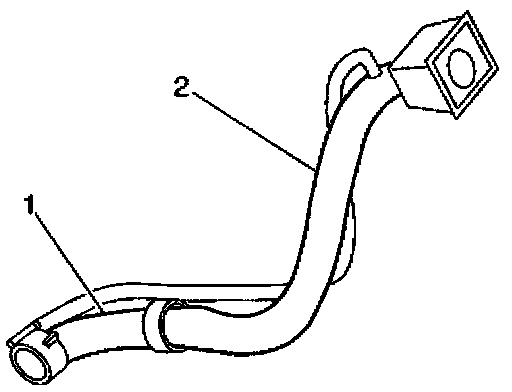

To help prevent refueling with leaded fuel, the fuel filler neck (2) has a built in restrictor and deflector. The opening in the restrictor will accept only the smaller unleaded gasoline fuel nozzle which must be fully inserted to bypass the deflector.
