Inflator Module - Replacement

REMOVE OR DISCONNECT
1. Disable SIR system. Refer to System Description in Air Bags and Seat Belts.

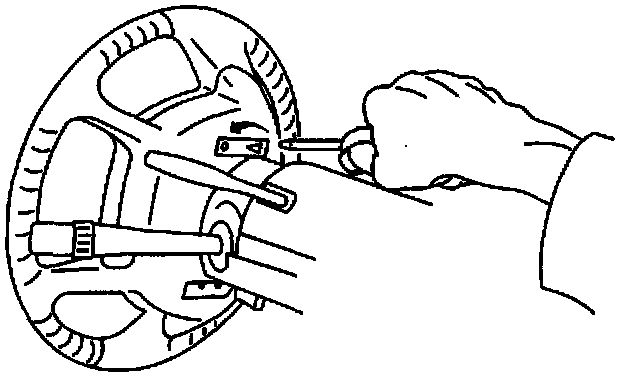

2. Using flat-bladed tool, on the back side of the inflatable restraint steering wheel module, to release the four leaf springs. Gently pull on the module while the leaf springs are released.

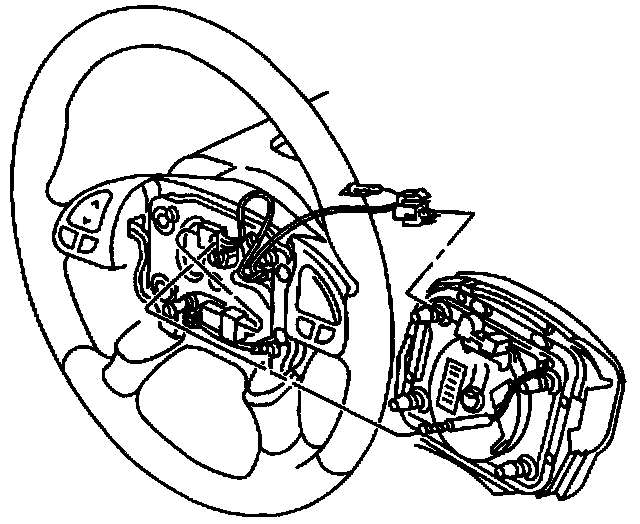

3. Electrical connections from inflatable restraint steering wheel module.





4. Inflatable restraint steering wheel module.

INSTALL OR CONNECT





1. Electrical connections to inflatable restraint steering wheel module.

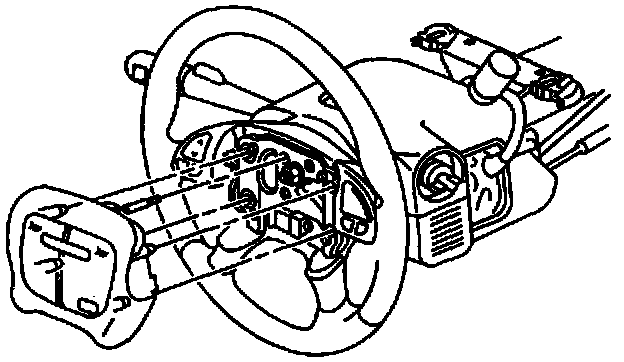

2. Inflatable restraint steering wheel module until it snaps into place.
3. Enable SIR system. Refer to System Description in Air Bags and Seat Belts.
