Home >> Pontiac >> 1999 >> Grand AM V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Junction Block >> C2 >> C2, Right Side

C2, Right Side

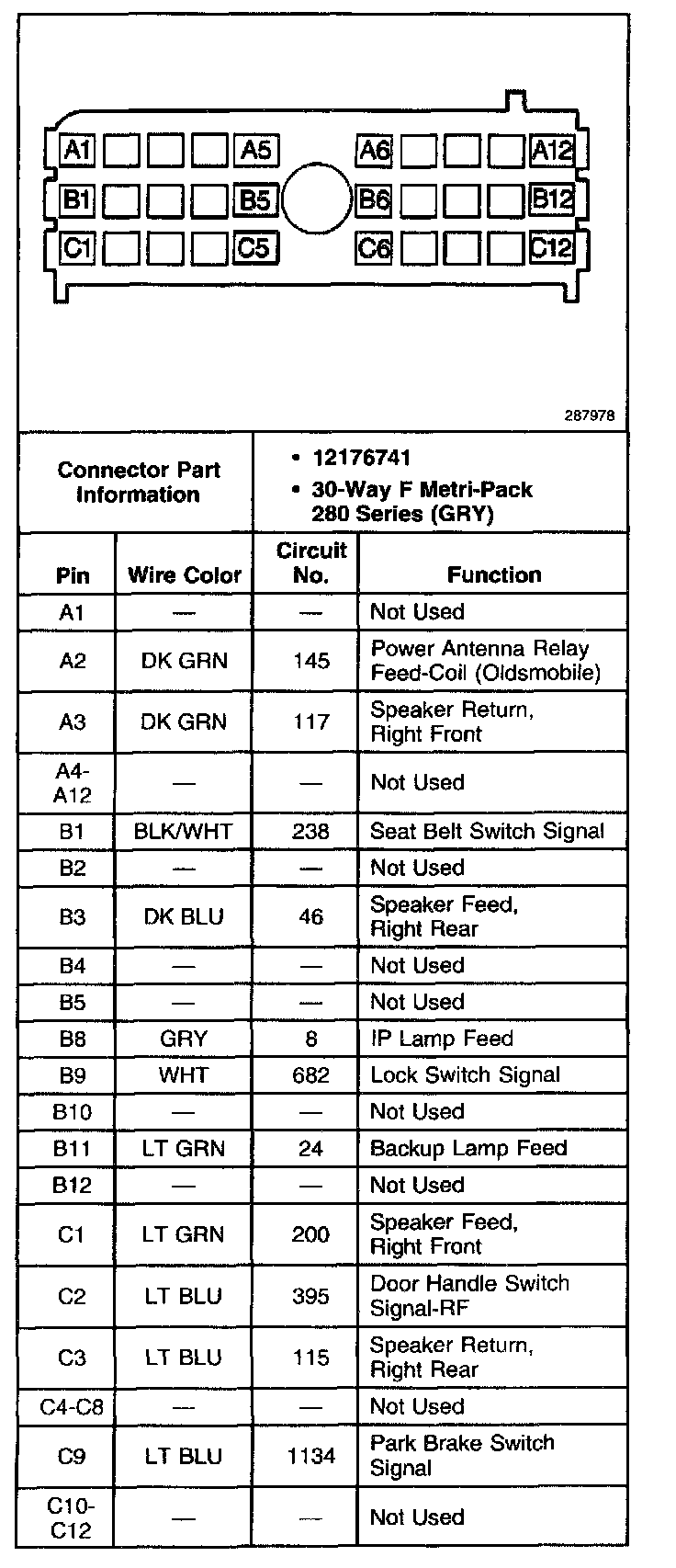

Junction Block C2, Right Side:
