Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1999
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block
>>
C3
>>
C3, Left Side
C3, Left Side

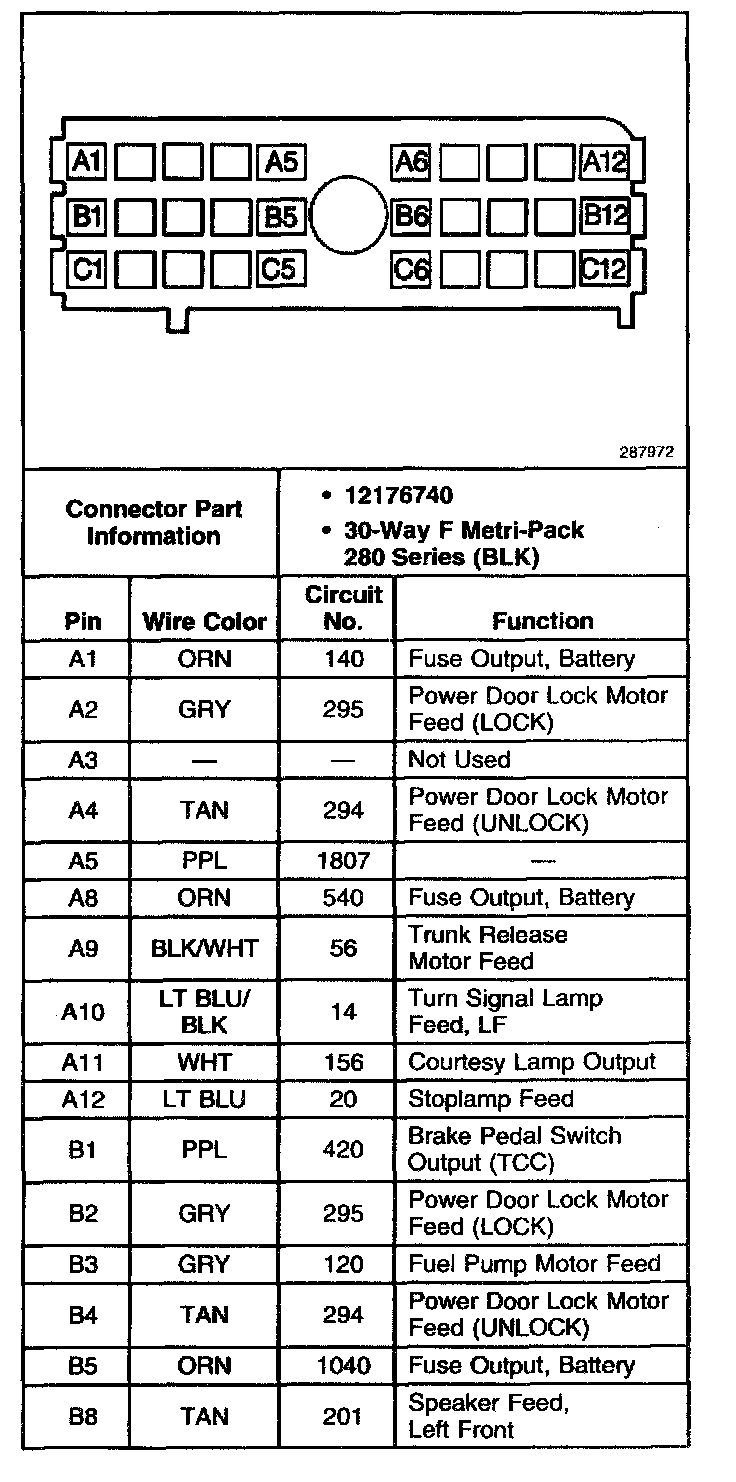

Junction Block C3, Left Side (Part 1 Of 2):

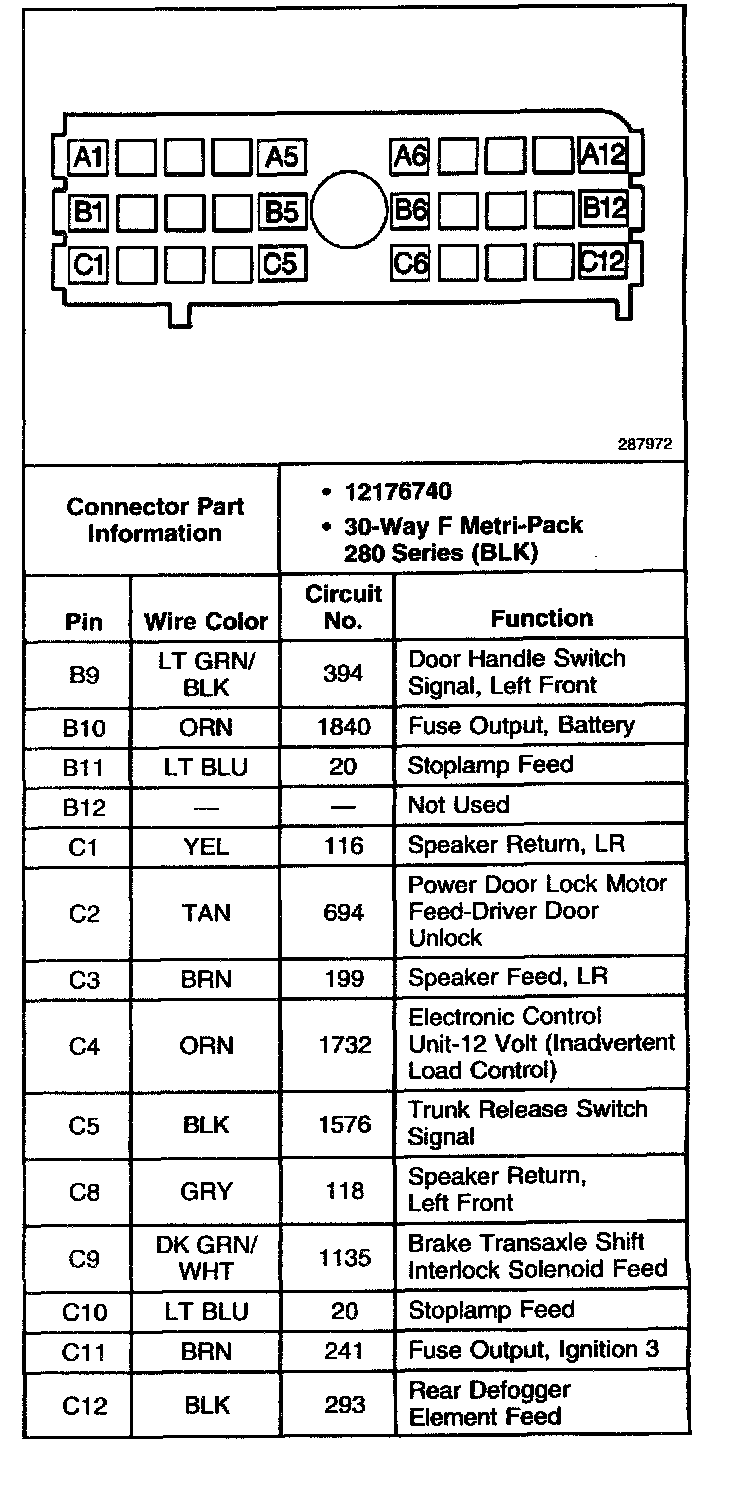

Junction Block C3, Left Side (Part 2 Of 2):
