Fuses
>>
RADIO BATT
RADIO BATT

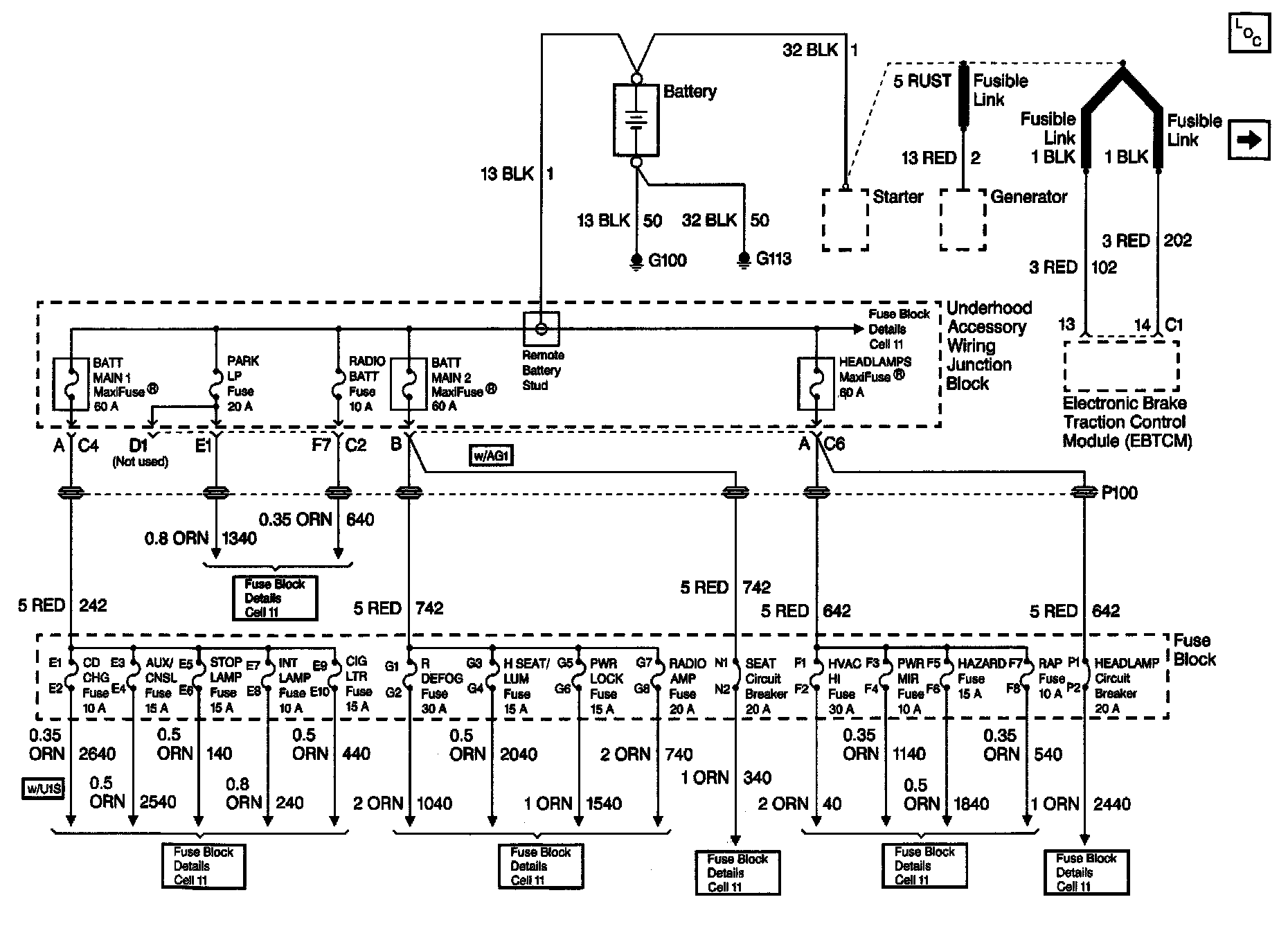

Power Distribution Schematics:
Fuse Block Details Schematics: CD CHNG, AUX CNSL, STOP LAMP, INT LAMP, CIG LTR Fuses:
