Interior Lights
>>
Snshd Illu Mirrors, Rof Rail CTSY/Reading LPS, Wnshld Hdr CTSY
Snshd Illu Mirrors, Rof Rail CTSY/Reading LPS, Wnshld Hdr CTSY

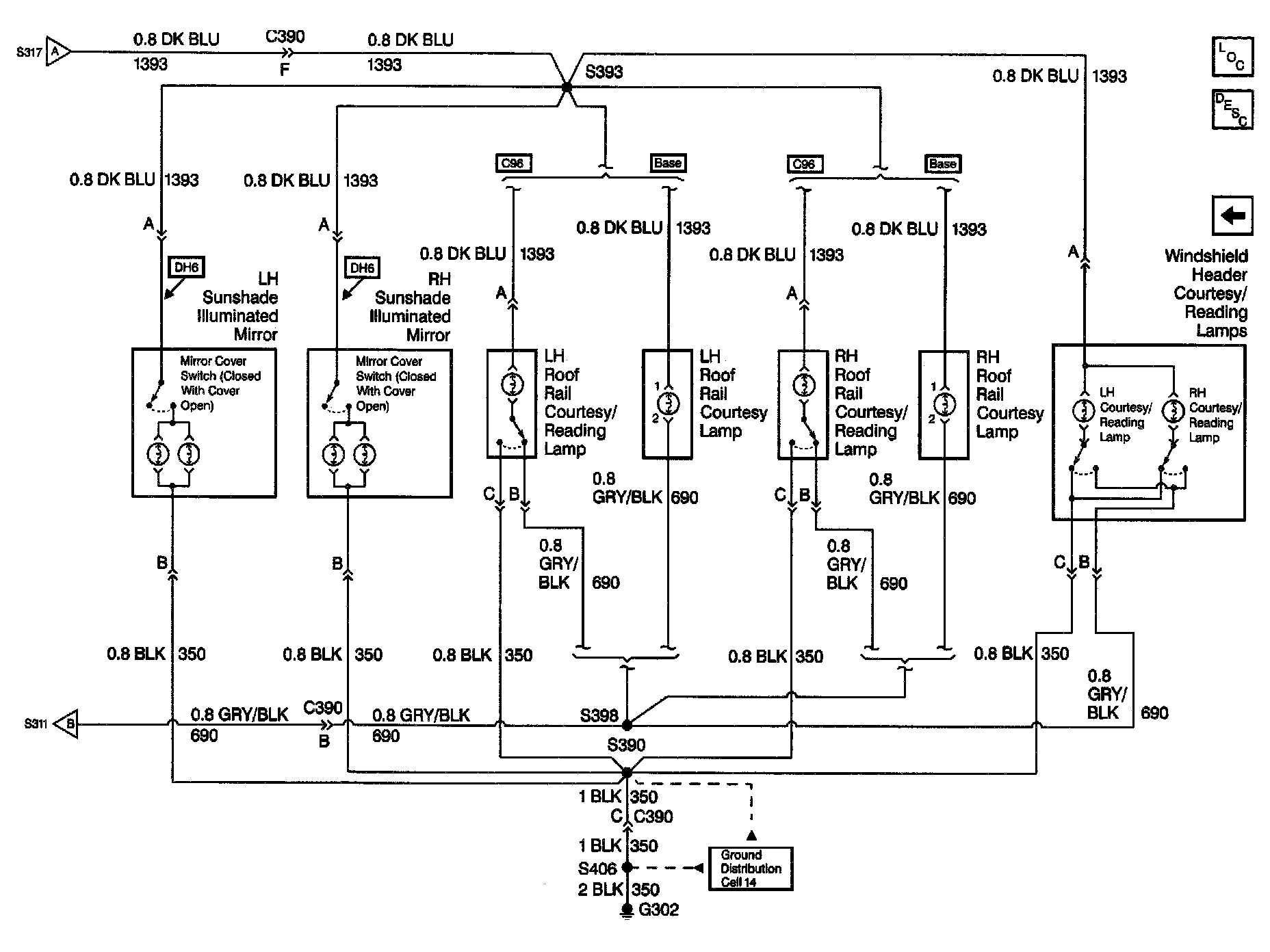

Interior Lights Schematics: Sunshade Illuminated Mirrors, Roof Rail Courtesy/Reading Lamps, Windshield Header Courtesy/Reading Lamps:
