A/T Shift Lock Control - Disassemble

DISASSEMBLY PROCEDURE

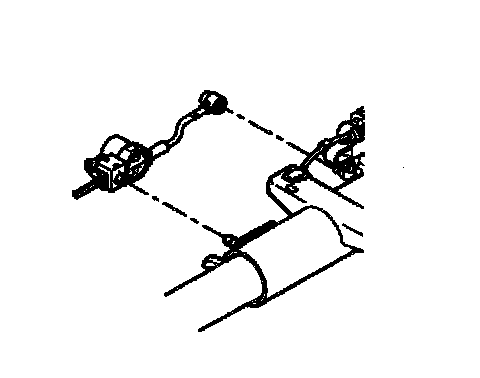

1. Remove the upper and lower shrouds. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle (Column Shift).
2. Remove the electrical BTSI actuator from the steering column.
3. Use a small screwdriver to pry the electrical BTSI actuator from the steering column jacket assembly.
