Home >> Pontiac >> 1999 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head and Components VIN 1

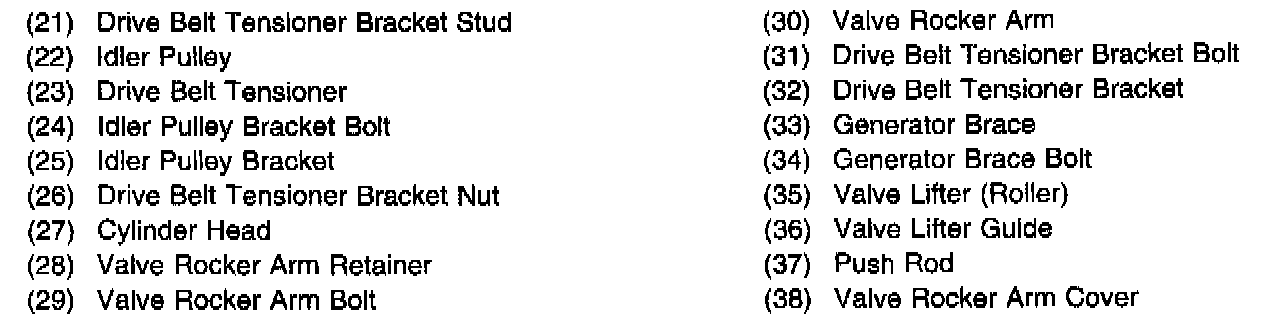

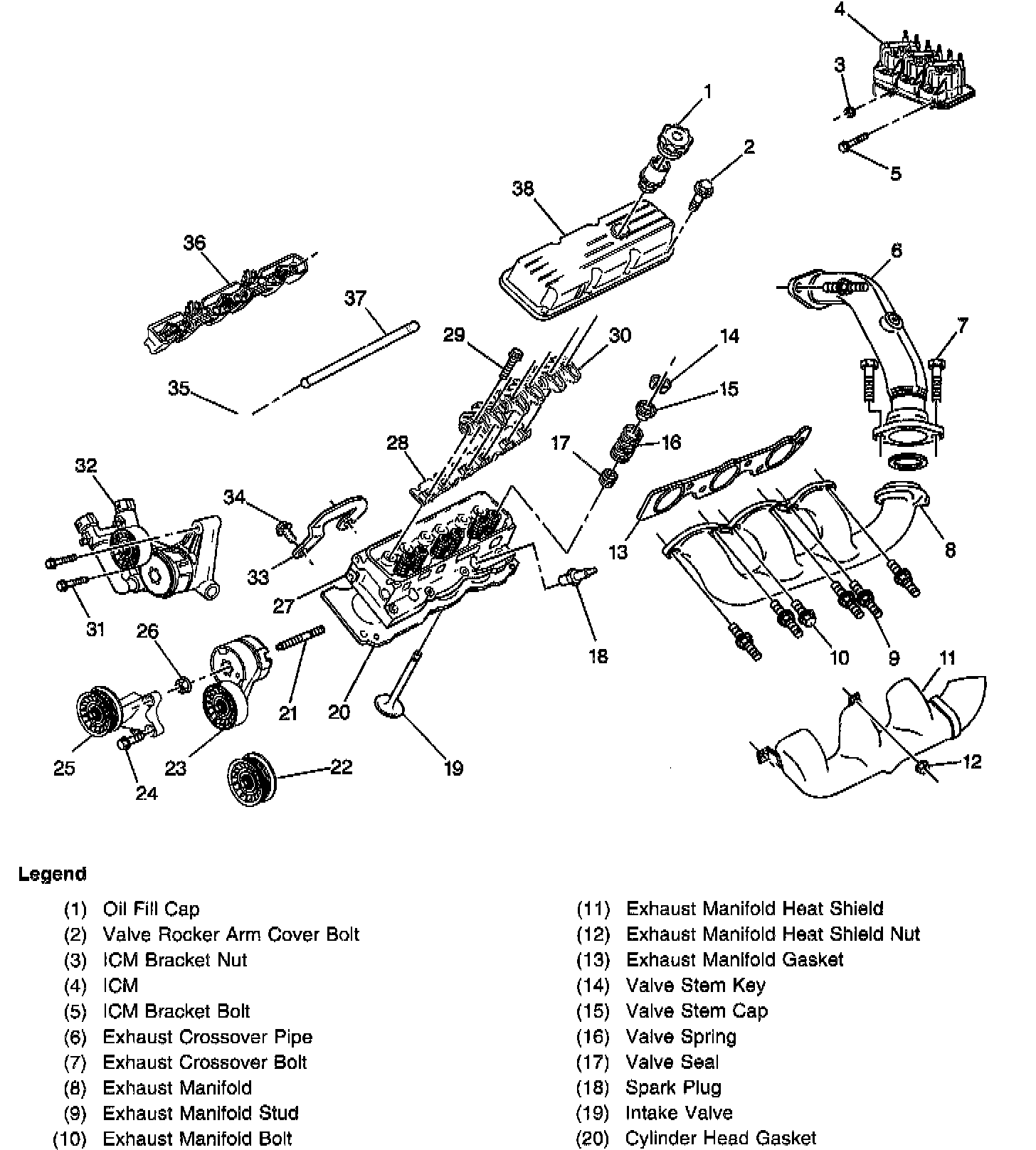

Cylinder Head and Components VIN 1

1 Of 2:



2 Of 2:
