HVAC Control Lamp Bulb Replacement

REMOVAL PROCEDURE

1. Remove the heating, ventilation and air conditioning (HVAC) control.
2. Remove the HVAC control wiring harness from the control.

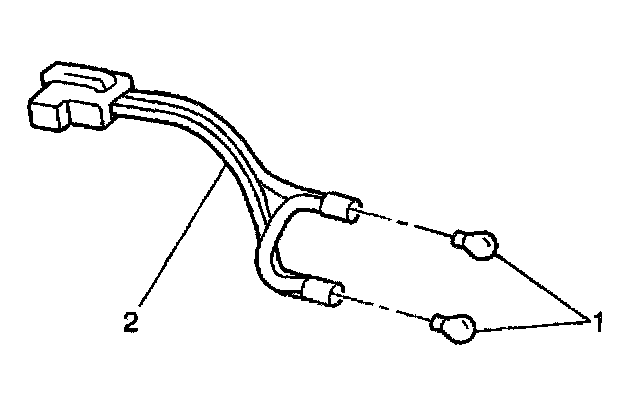

3. Gently, pull the burned out HVAC control lamp bulb (1) from the control lamp harness.

INSTALLATION PROCEDURE

1. Install a new HVAC control lamp bulb (1) to the control lamp harness.
2. Install the HVAC control wiring harness to the control.
3. Install the HVAC control.
