Oil Pressure Sensor: Service and Repair
REMOVAL PROCEDURE 1.

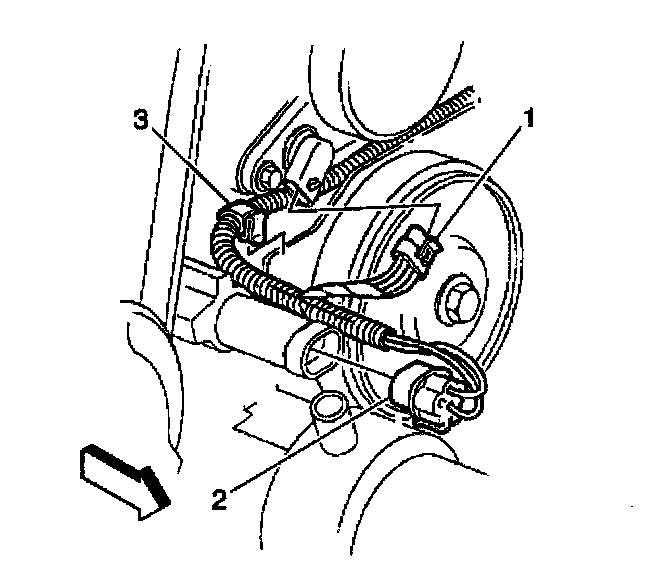

Disconnect
oil pressure sensor electrical connector (2).
2.

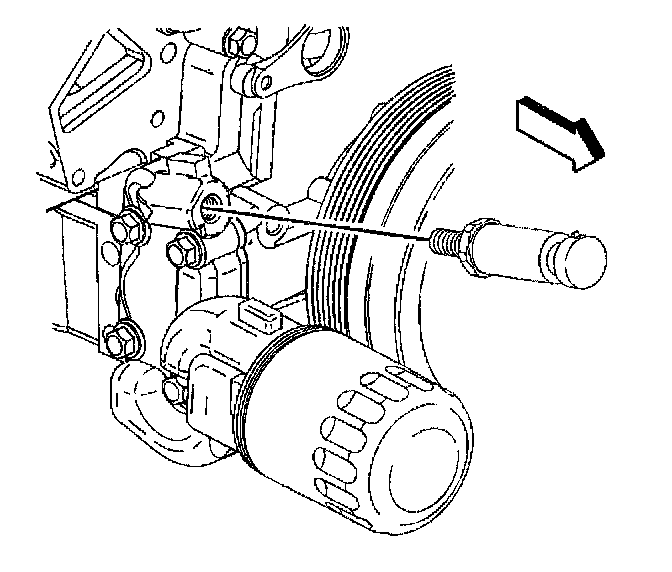

Remove the
oil pressure sensor.
INSTALLATION PROCEDURENOTE: Refer to Fastener Notice in Service Precautions.
1.
Install the
oil pressure sensor.
Tighten Tighten the
oil pressure sensor to
16 N.m (12 lb ft).
2.
Connect
oil pressure sensor electrical connector (2).
