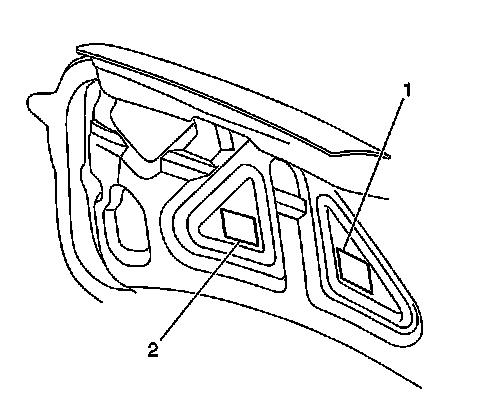

Service Parts ID Label

Service Parts ID Label




1 - Vehicle Identification Number
2 - Engineering Model Number (Vehicle Division, Vehicle Line and Body Style)
3 - Interior Trim and Decor Level
4 - Exterior (Paint Color) WA Number
5 - Paint Technology
6 - Special Order Paint Colors and Numbers
7 - Vehicle Option Content





The service parts identification label (2) has been developed and placed on the inside of the rear compartment lid to help service and parts personnel identify parts and options that were originally installed on the vehicle. Refer to RPO Code List (RPO Codes) for a definition of the codes that are printed on the label or referred to in this service information.
