Power Mirror Replacement



Power Mirror Replacement

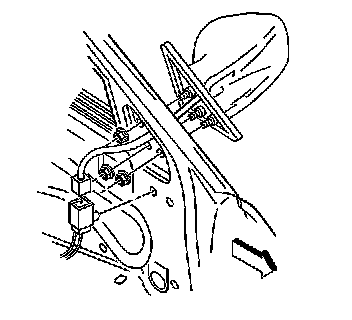

Removal Procedure





1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement. Service and Repair
2. Disconnect the electrical connectors.
3. Remove the mirror reinforcement cover.
4. Remove the nuts from the mirror.
5. Remove the mirror from the front door .



Installation Procedure





1. Position the mirror to the front door.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the nuts to the mirror, starting at the lower left nut.

Tighten the outside mirror nuts to 10 N.m (89 lb in).

3. Install the mirror reinforcement cover.
4. Connect the electrical connectors.
5. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement. Service and Repair
