Radiator Hose Replacement-Outlet

Removal Procedure
^ Tools Required
- J 38185 Hose Clamp Pliers





1. Drain the cooling system. Refer to Draining and Filling Cooling System.

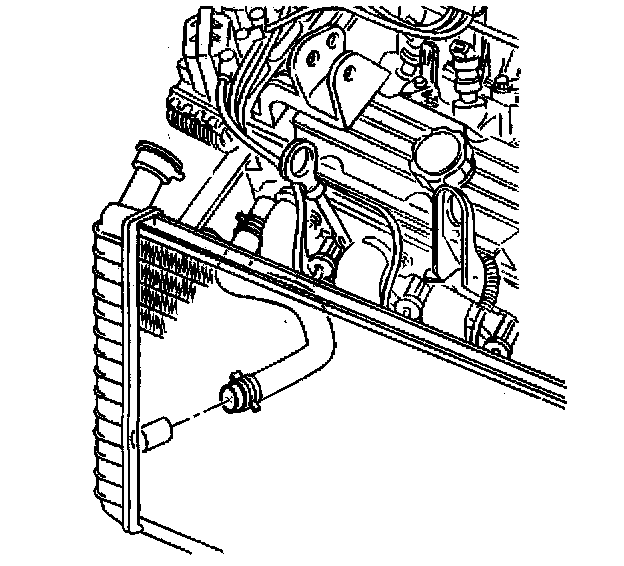

2. Use the J 38185 in order to reposition the hose clamp at the radiator.
3. Disconnect the outlet hose from the radiator.





4. Use the J 38185 in order to reposition the hose clamp at the water pump housing.
5. Disconnect the outlet hose from the water pump housing.
6. Remove the outlet hose.

Installation Procedure





1. Align the marks on the hose. Install the outlet hose to the water pump housing.
2. Use the J 38185 in order to reposition and install the hose clamp at the water pump housing.





3. Install the outlet hose to the radiator.
4. Use the J 38185 in order to reposition and install the outlet hose at the radiator.
5. Fill the cooling system. Refer to Draining and Filling Cooling System.
6. Inspect for leaks.
