Shift Interlock: Service and Repair

Removal Procedure





1. Disconnect the negative battery cable in Starting and Charging.
2. Remove the center console. Refer to Console Replacement - Front Floor center console in the Instrument Panel, Gauges and Console.

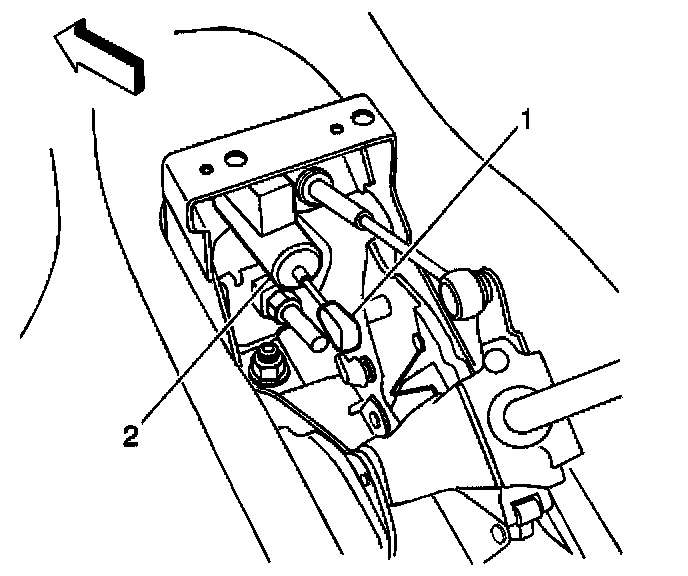

3. Disconnect electrical connector from the Automatic Transmission Shift Lock Control (2).





4. Remove both ends of Automatic Transmission Shift Lock Control from pivot points (1).

Installation Procedure

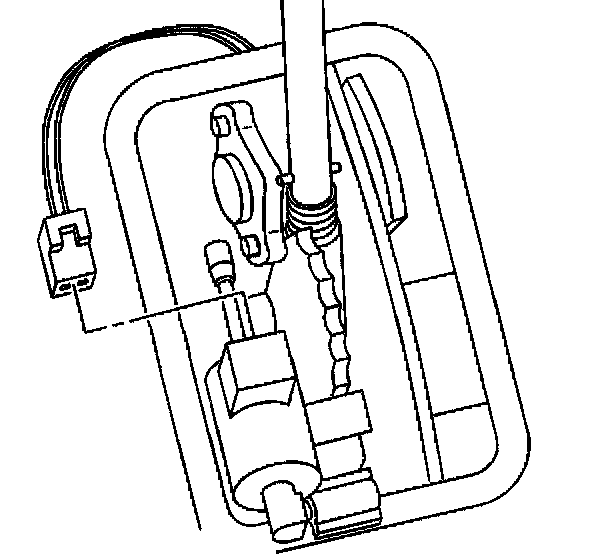

1. Install Automatic Transmission Shift Lock Control upper clip onto upper pivot point, and lower clip onto the lower pivot point.
2. Install the Center Console. Refer to Console Replacement - Front Floor Center Console in Instrument Panel, Gauges and Warning Indicators.

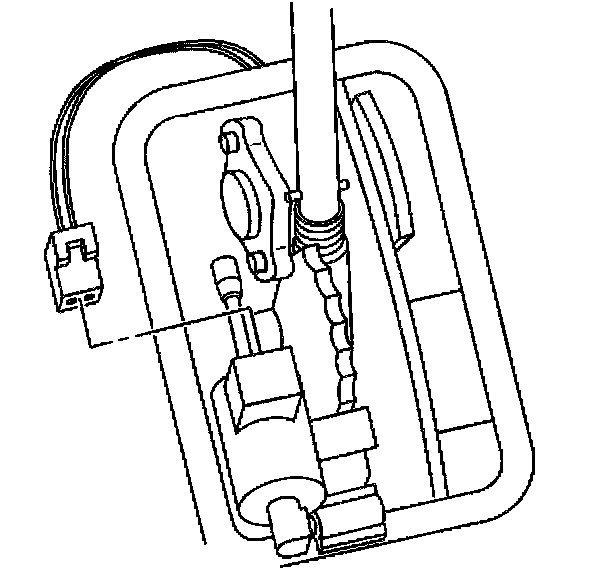

3. Install electrical connector to Automatic Transmission Shift Lock Control.
4. Connect negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Starting and Charging.
