Window Channel Retainer Replacement - Rear Door

REMOVAL PROCEDURE

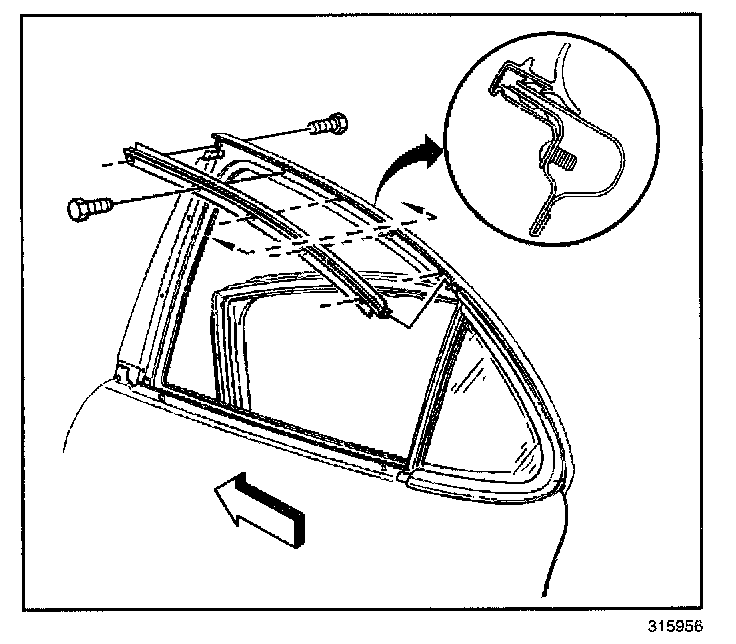

1. Partially remove the upper portion of the rear door frame applique.
2. Pull down and reposition the rear door window weatherstrip in order to gain access to the screws.
3. Remove the screws from the window weatherstrip retainer.
4. Remove the forward screw from the window weatherstrip retainer.
5. Remove the window weatherstrip retainer from the rear door.

INSTALLATION PROCEDURE




1. Position the window weatherstrip retainer to the rear door.
2. Push downwards on the door window weatherstrip to gain access to the screw holes.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the window weatherstrip retainer screws.

Tighten
Tighten the rear door window weatherstrip retainer screws to 2 N.m (18 lb in).

4. Install the rear door frame applique.
