Console Replacement - Front Floor

REMOVAL PROCEDURE




1. Remove the front floor console trim plate.
2. Disconnect the electrical connectors.

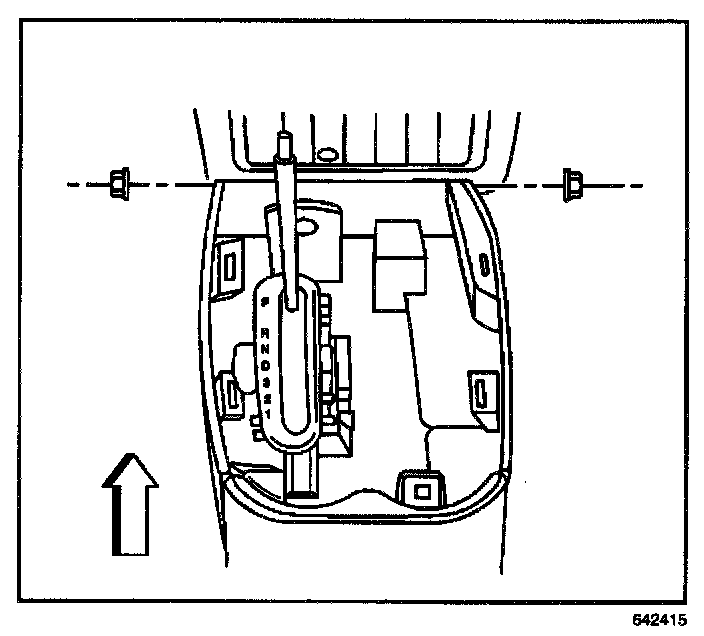

3. Remove the nuts from the front of the front floor console.




4. Remove the nuts from the back of the front floor console.

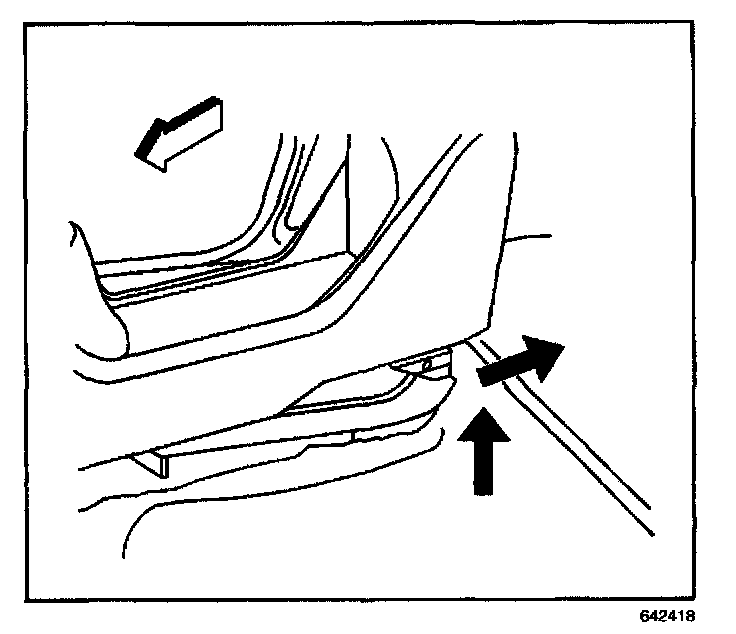

5. Lift straight up on the front floor console and pull back in order to remove the console from the vehicle.

INSTALLATION PROCEDURE

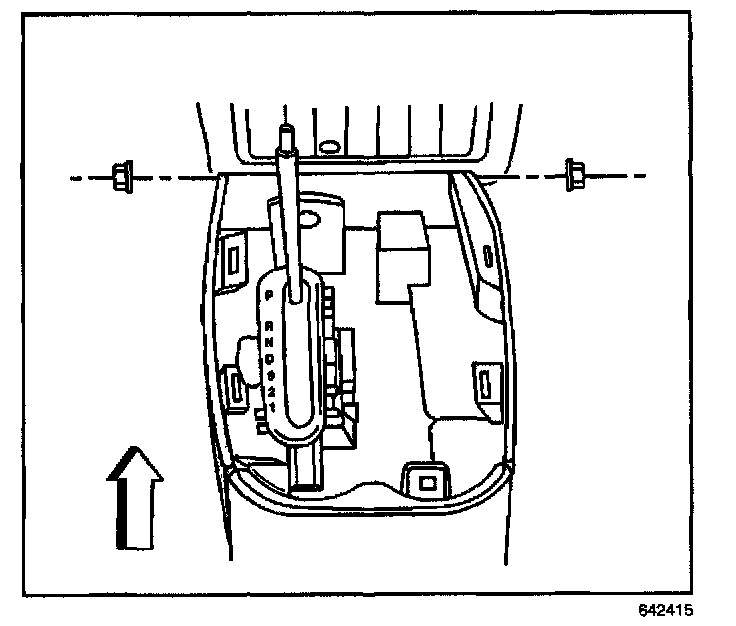

1. Align the front floor console to the floor.
2. Connect the required electrical connectors.

NOTE: Refer to Fastener Notice in Service Precautions.

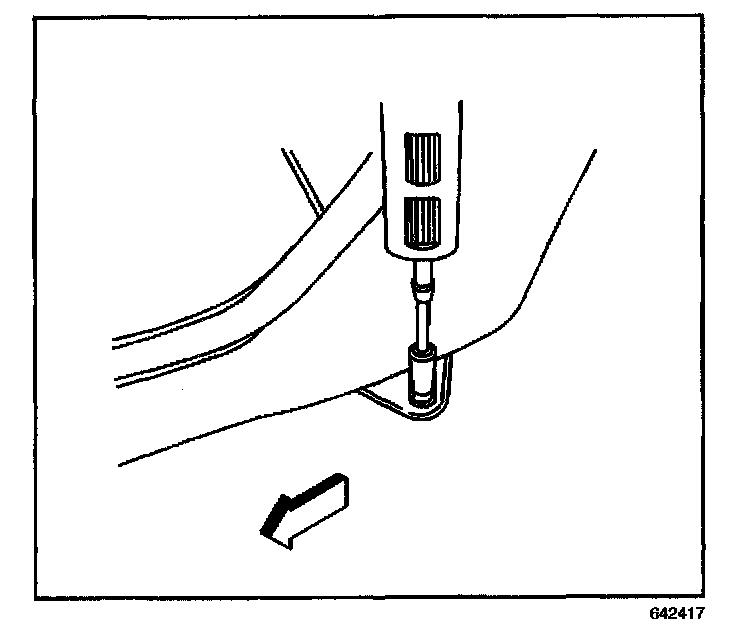

3. Install the nuts to the front of the front floor console.

Tighten
Tighten the nuts to 6 N.m (53 lb in).

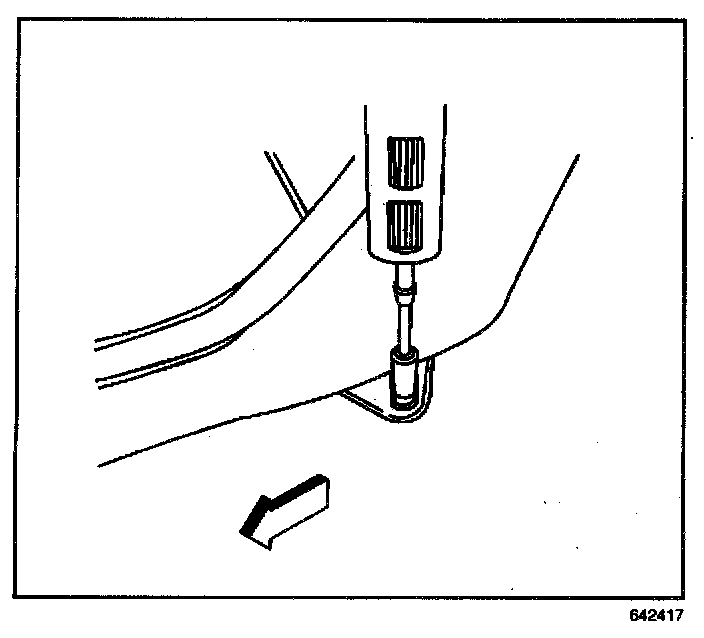

4. Install the nuts to the rear of the front floor console.

Tighten
Tighten the nuts to 6 N.m (53 lb in).

5. Install the front floor console trim plate.
