Floor Console Bracket Replacement

Floor Console Bracket Replacement

Removal Procedure

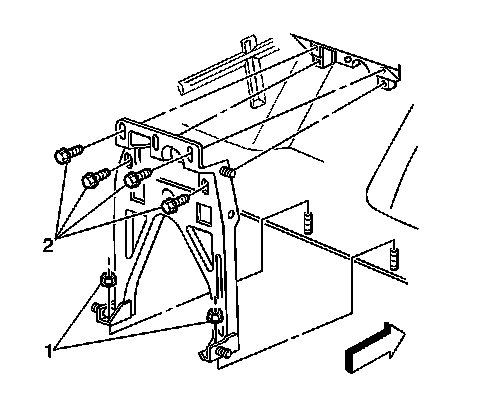

1. Remove the front floor console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).
2. Disconnect the console electrical center from the floor-console bracket and move aside, out of the way.
3. For the Aztek only, remove the floor shift control. Refer to Transmission Control Replacement in Automatic Transaxle - 4T65-E.




4. Remove the upper bolts (2) from the instrument panel (I/P).
5. Remove the lower nuts (1) from the floor.
6. Remove the front floor console bracket from the floor.

Installation Procedure




1. Align the front floor console bracket to the floor.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the lower nuts (1) to the front floor console bracket.

Tighten the nuts to 10 Nm (89 lb in).

3. Install the upper bolts/screws (2) to the I/P.

Tighten the bolts/screws to 2.5 Nm (22 lb in).

4. For the Aztek only, install the floor shift control. Refer to Transmission Control Replacement in Automatic Transaxle - 4T65-E.
5. Install the console electrical center to the original location.
6. Install the front floor console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).
