Lock Cylinder Replacement - Door

REMOVAL PROCEDURE




1. Remove the front door panel.
2. Remove the front door water deflector.

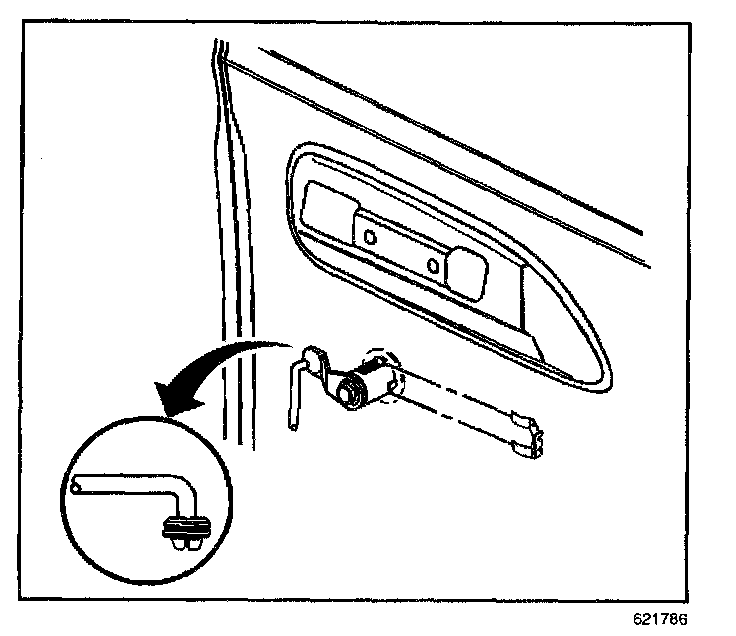

3. Disconnect the front door lock cylinder rod from the front door lock.
4. Remove the front door lock cylinder retainer from the front door lock cylinder.
5. Remove the front door lock cylinder from the front door lock cylinder hole with the lock cylinder rod.
6. Remove the lock cylinder rod from the front door lock cylinder.

INSTALLATION PROCEDURE




1. Install the lock cylinder rod to the front door lock cylinder.
2. Install the front door lock cylinder into the front door lock cylinder hole with the lock cylinder rod.
3. Install the front door lock cylinder retainer to the front door lock cylinder.
4. Connect the front door lock cylinder rod to the front door lock.
5. Install the front door water deflector.
6. Install the front door panel.
