Manual Seat Lumbar Support Replacement

Manual Seat Lumbar Support Replacement

Removal Procedure

1. Remove the front bucket seat. Refer to Bucket Seat Replacement (Bucket Seat Replacement).
2. Remove the outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement (Front Seat Cushion Outer Trim Panel Replacement).





Important: The lumbar support must be in the relaxed position to disconnect the lumbar support cable.

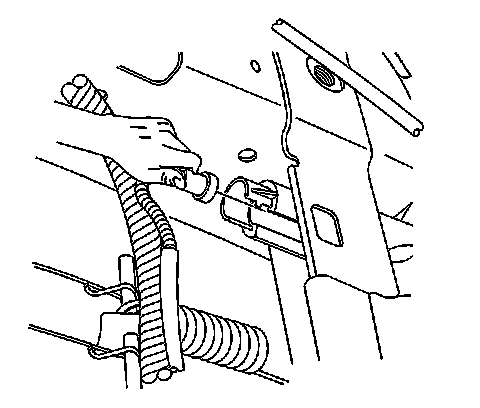

3. Remove the lumbar control cable from the lumbar control.

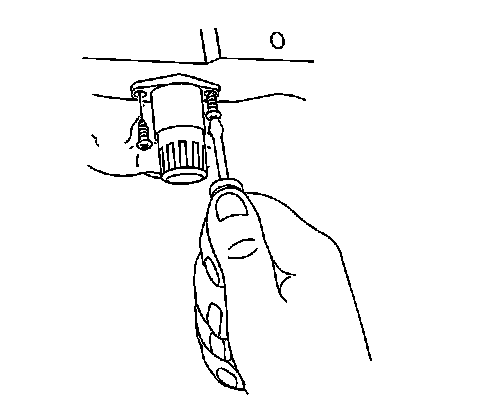

4. Remove the screws from the lumbar control.
5. Remove the lumbar control from the seat cushion frame.

Installation Procedure




1. Install the lumbar control to the seat cushion frame.

Notice: Refer to Fastener Notice .

2. Install the screws to the lumbar control.

Tighten the screws to 10 Nm (89 lb in).




3. Install the lumbar control cable to the lumbar control.
4. Install the outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement (Front Seat Cushion Outer Trim Panel Replacement).
5. Install the front bucket seat. Refer to Bucket Seat Replacement (Bucket Seat Replacement).
