Tailgate Release Handle: Service and Repair

Endgate Handle Replacement

Removal Procedure




1. Open the endgate.

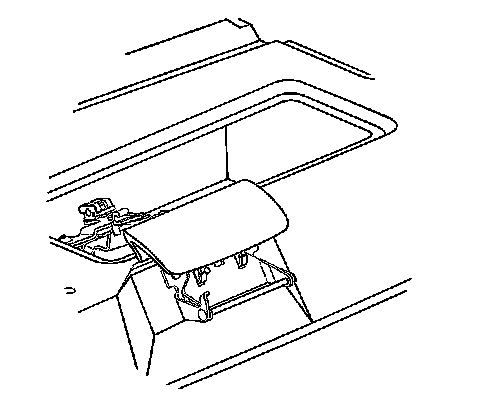

2. Remove the bolts from the endgate handle.
3. Remove the endgate handle from the endgate handle assembly.

Installation Procedure




1. Install the endgate handle to the endgate handle assembly.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts to the endgate handle.

Tighten the endgate handle bolts to 10 Nm (89 lb in).

3. Close the endgate.
