Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Lamp
Parking Lamp

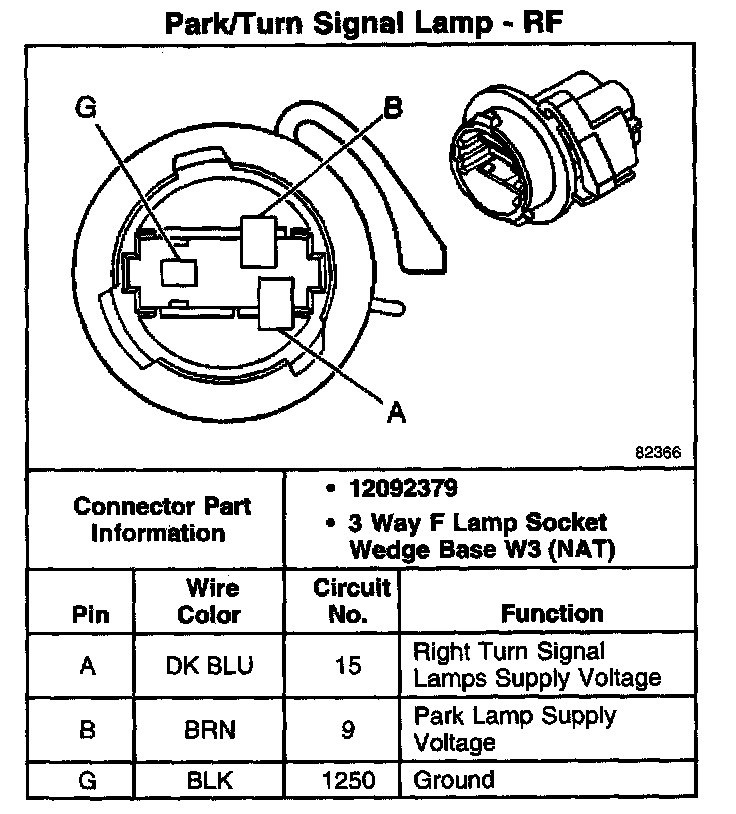

Park/Turn Signal Lamp - RF:

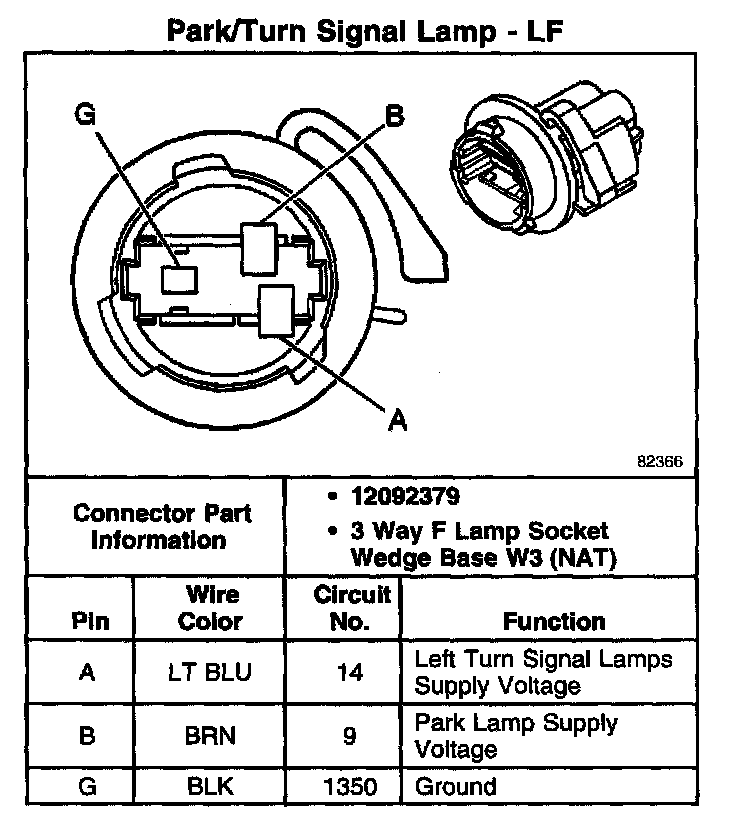

Park/Turn Signal Lamp - LF:

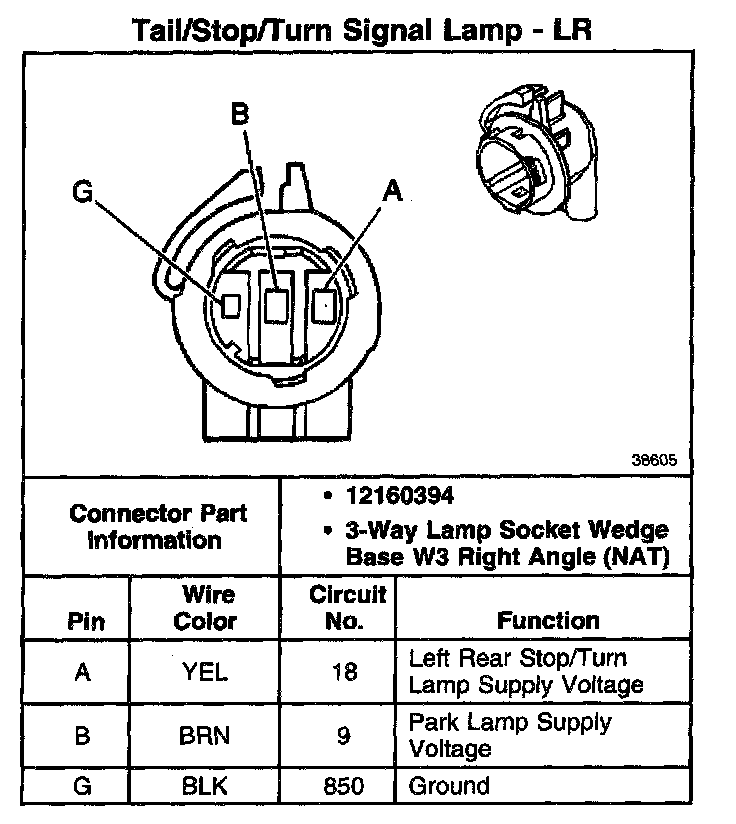

Tail/Stop/Turn Signal Lamp - LR:

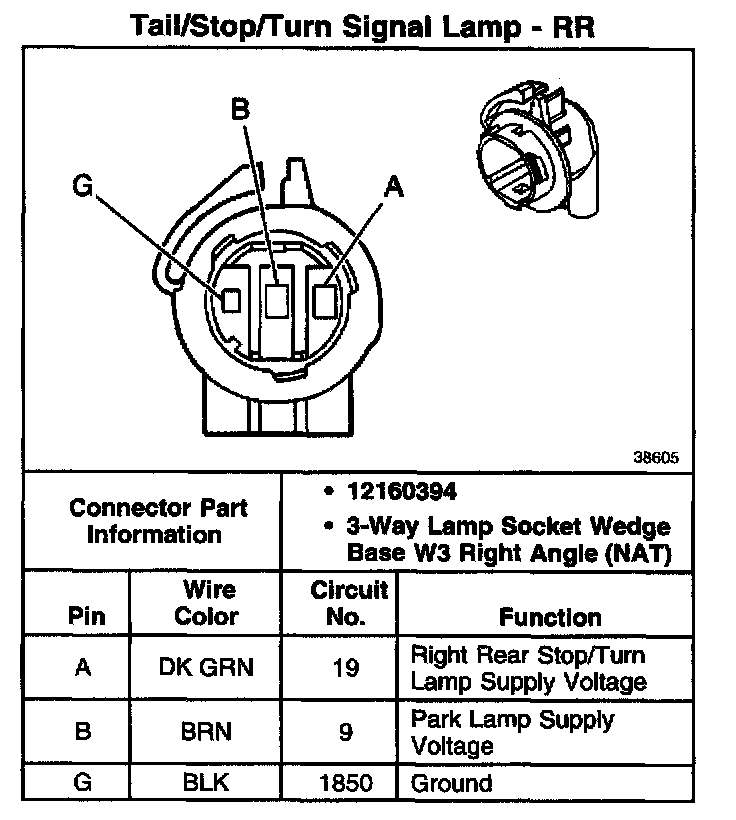

Tail/Stop/Turn Signal Lamp - RR:
