Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
Power Seat Motor

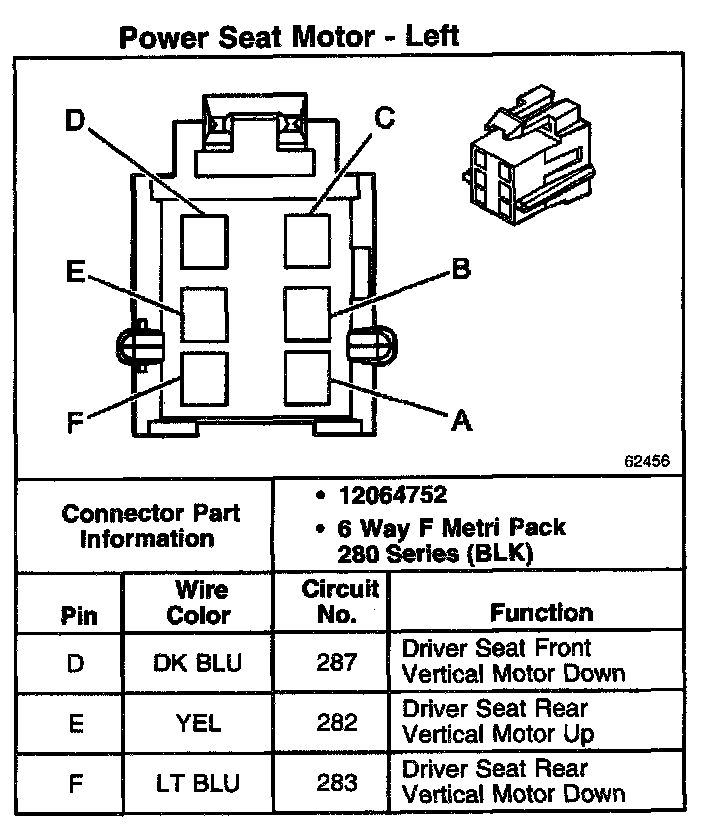

Power Seat Motor - Left (Part 2 Of 2):
Power Seat Motor - Left (Part 1 Of 2):
Power Seat Motor - Right:
