Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2001
>>
Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Fluid Passages
>>

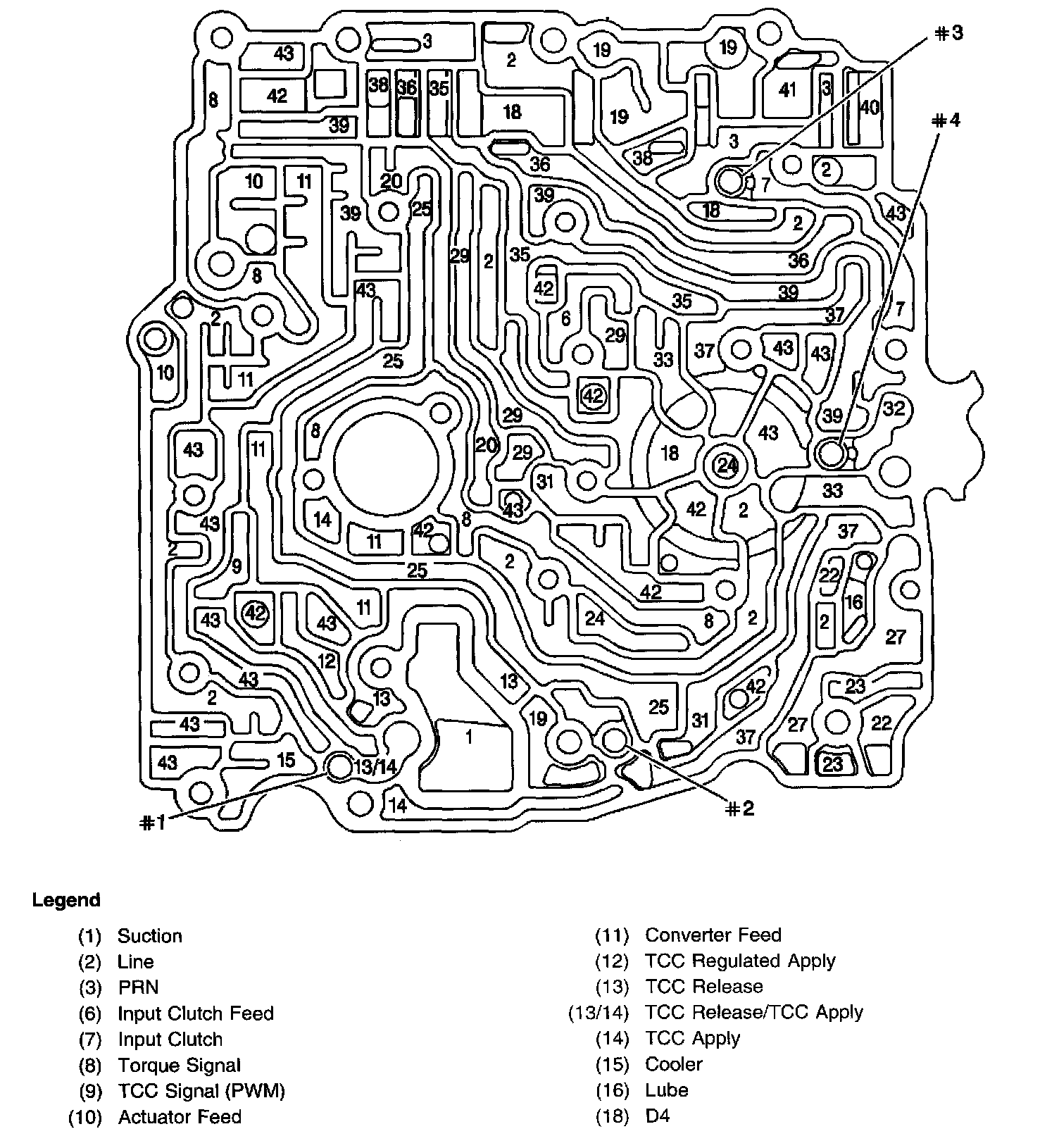

Case Cover Fluid Passages (Control Valve Body Side)
Case Cover Fluid Passages (Control Valve Body Side)

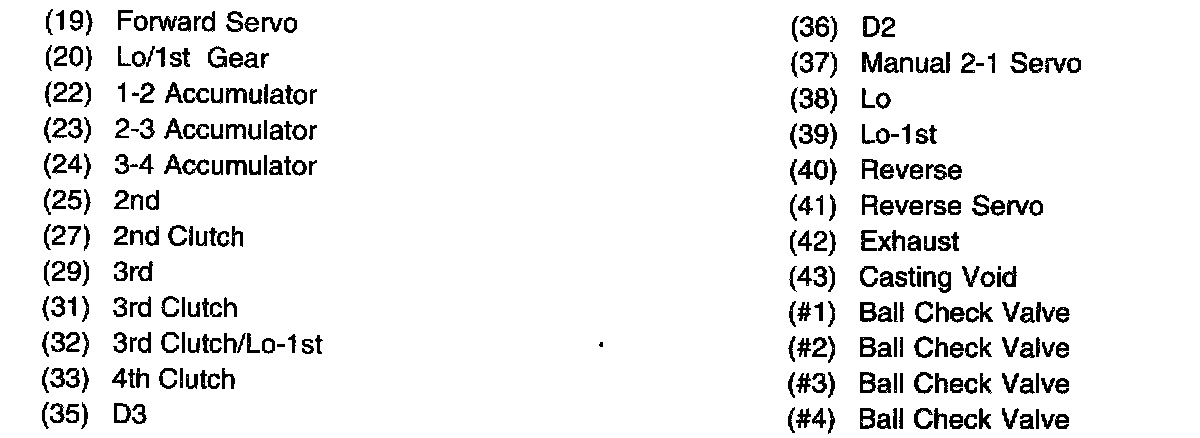

Part 1 of 2
Part 1 of 2
Case Cover Fluid Passages (Control Valve Body Side)
