Inlet

Radiator Hose Replacement - Inlet

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure





1. Partially drain the coolant.

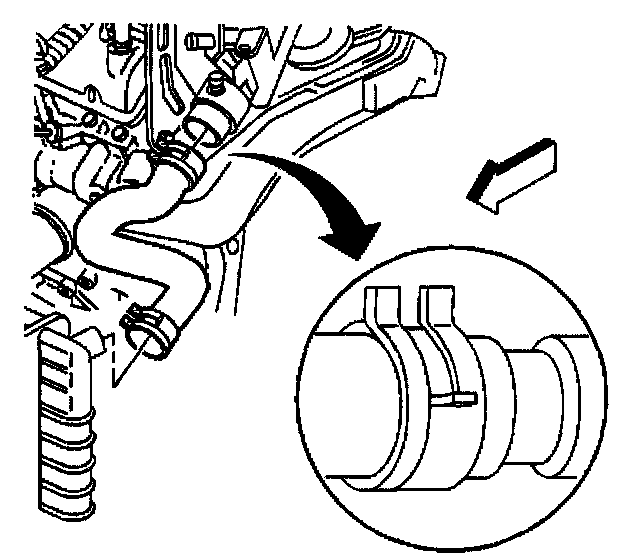

2. Reposition the hose clamp at the radiator using the J 38185.
3. Disconnect the inlet hose from the radiator.
4. Reposition the hose clamp at the thermostat housing using the J 38185.
5. Disconnect the inlet hose from the radiator.
6. Remove the inlet hose.

Installation Procedure





1. Install the inlet hose.
2. Connect the inlet hose to the radiator.

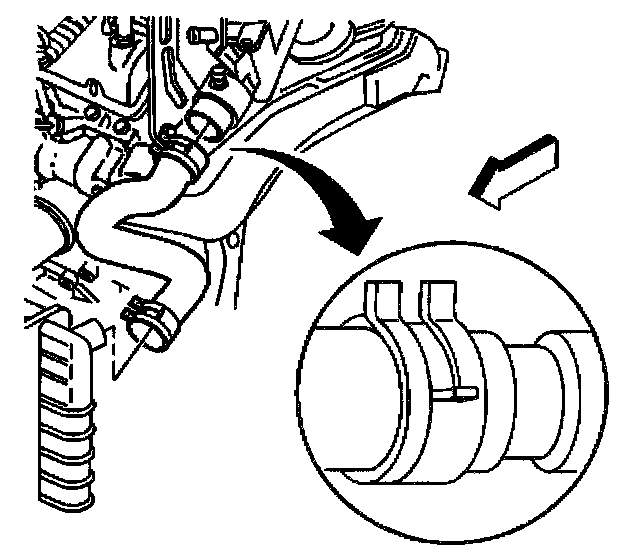

3. Reposition the hose clamp at the radiator to secure the hose using the J 38185.
4. Connect the inlet hose to the thermostat housing.
5. Reposition the hose clamp at the thermostat housing to secure the hose using the J 38185.
6. Refill the coolant.
