Battery Hold Down Retainer Replacement

REMOVAL PROCEDURE

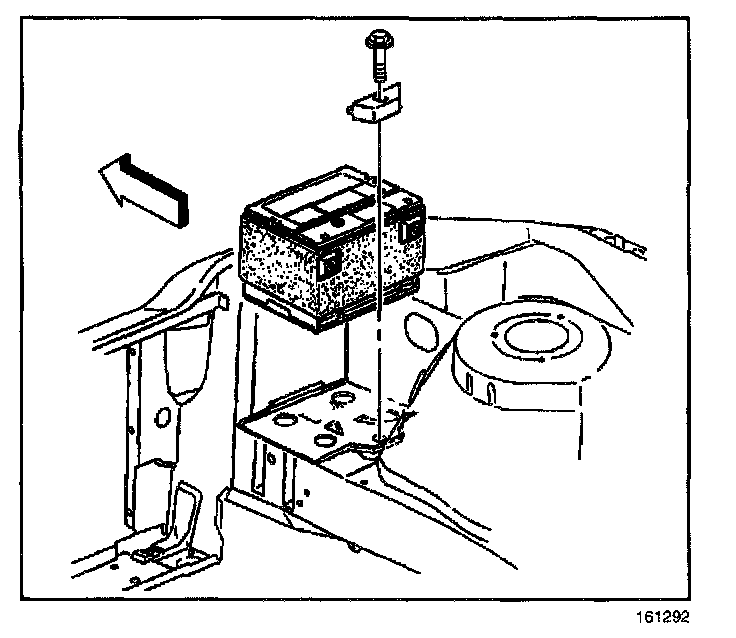

1. Remove the battery hold down retainer bolt.
2. Remove the battery hold down retainer.

INSTALLATION PROCEDURE




1 Install the battery hold down retainer.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the battery hold down retainer bolt.

Tighten
Tighten the battery hold down retainer bolt to 25 N.m (18 lb ft).
