I/M System DTC Table

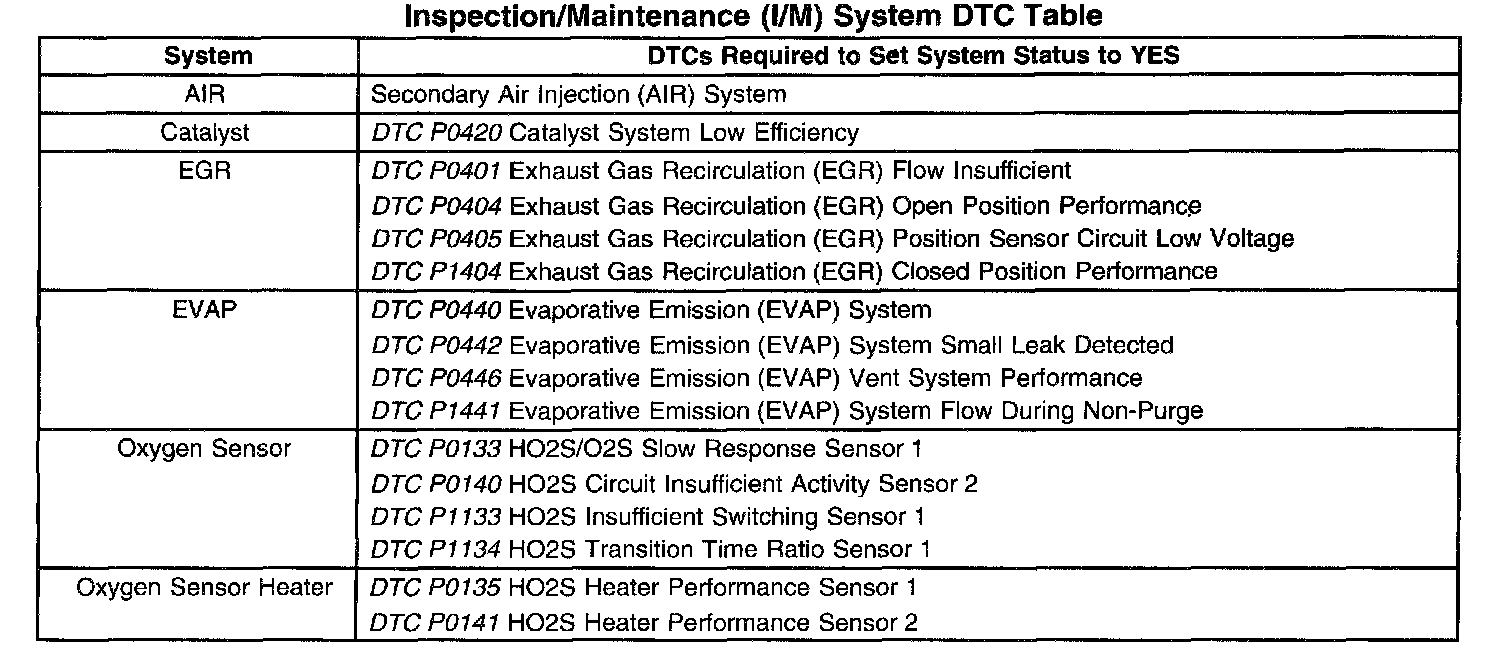

Inspection/Maintenance (I/M) System DTC Table:
IMPORTANT: Not all vehicles will have every DTC listed in each section. For example, a vehicle may have only 2
oxygen sensors or 1 catalyst. Only those DTCs applicable to the vehicle are required to update each System Status to YES. Refer to the appropriate DTCs that are supported for each vehicle.
