Driver Information Center Module Replacement

REMOVAL PROCEDURE

1. Remove the instrument panel (IP) insulators.
2. Remove the IP cluster trim panel.

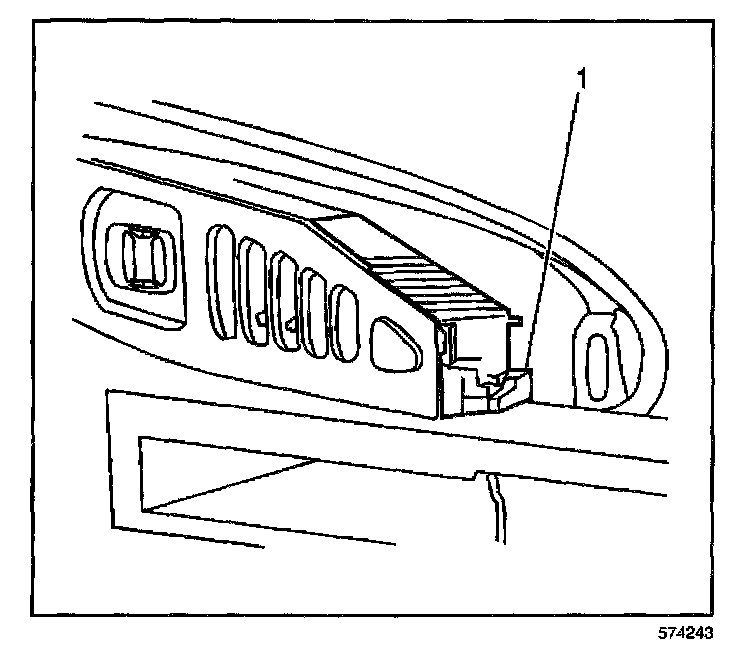

3. Unsnap the driver information center (DIC) from the IP (1).

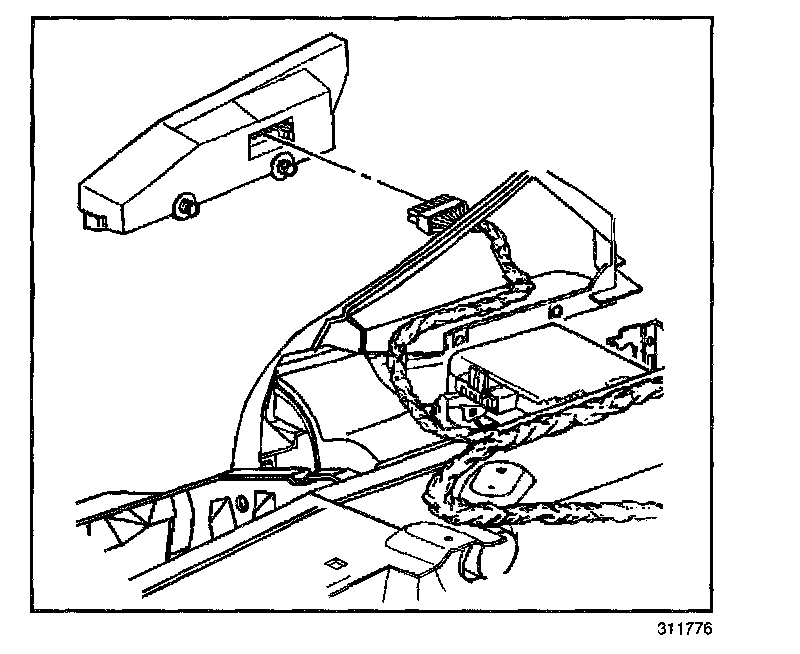

4. Disconnect the DIC electrical connectors.
5. Remove the DIC from the instrument panel.

INSTALLATION PROCEDURE

1. Connect the DIC electrical connectors.

2. Snap the DIC (1) into the instrument panel
3. Install the IP cluster trim panel.
4. Install the IP insulators.
