OnStar Button Assembly Replacement

REMOVAL PROCEDURE

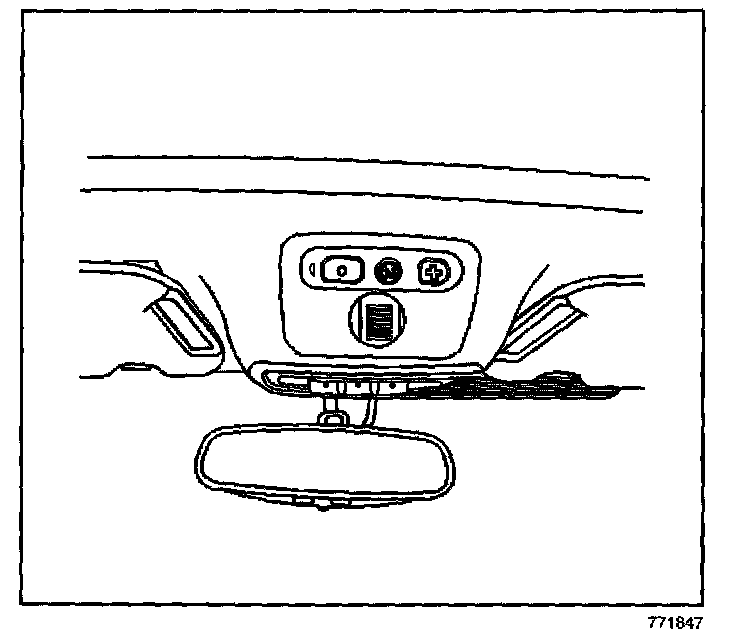

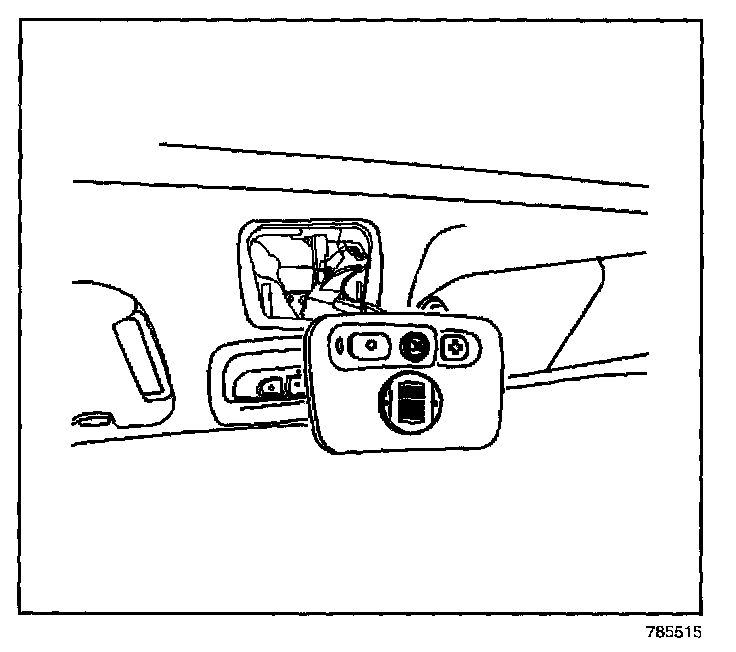

1. Using a small flat-bladed tool, remove the OnStar(R) bezel from the headliner.

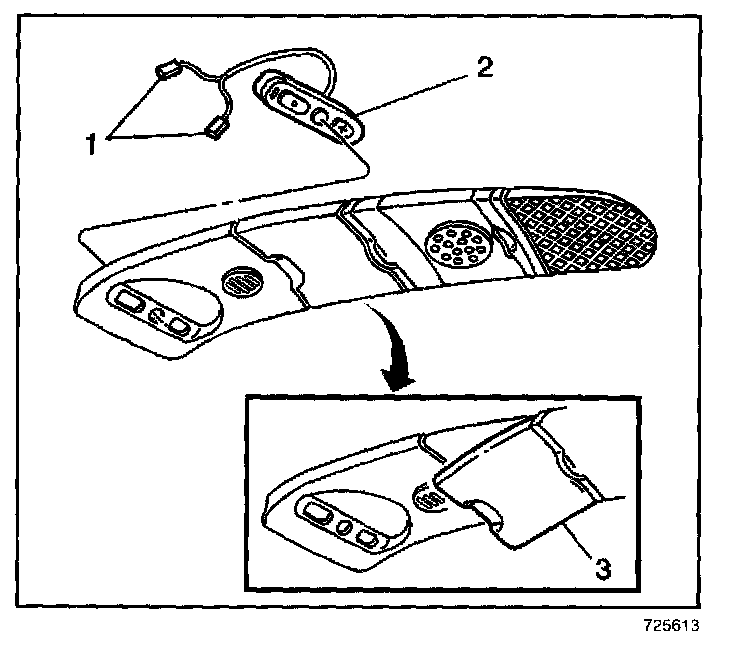

2. Disconnect the electrical connectors from the button assembly.
3. Remove the OnStar(R) button assembly.

INSTALLATION PROCEDURE




1. Install the OnStar(R) button assembly to the bezel.
2. Connect the electrical connector to the button assembly.

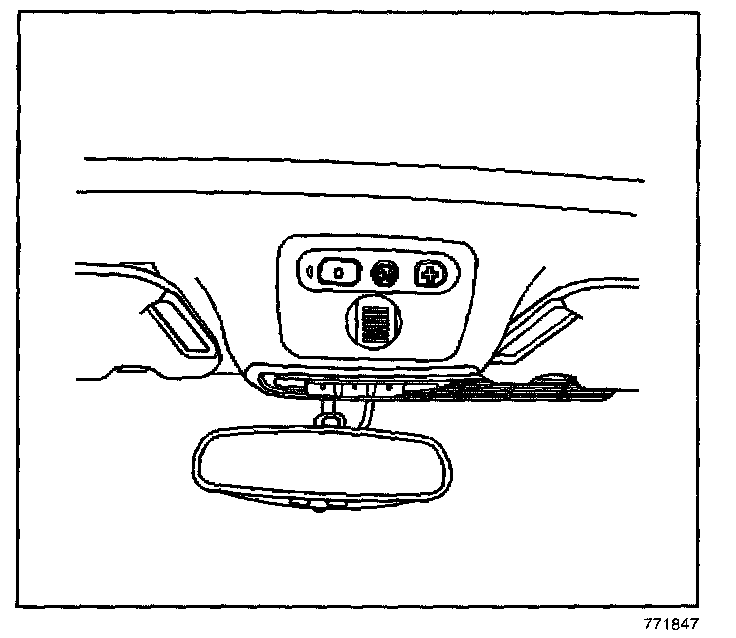

3. Install the OnStar(R) bezel to the headliner. Press on the bezel until seated.
