Home >> Pontiac >> 2002 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp

Backup Lamp

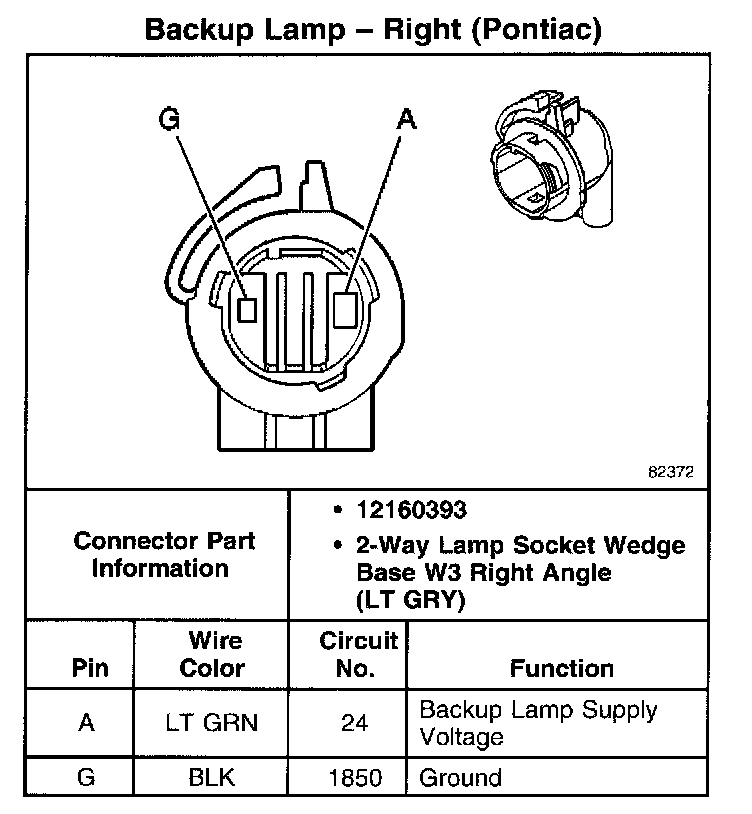

Backup Lamp - Right (Pontiac):

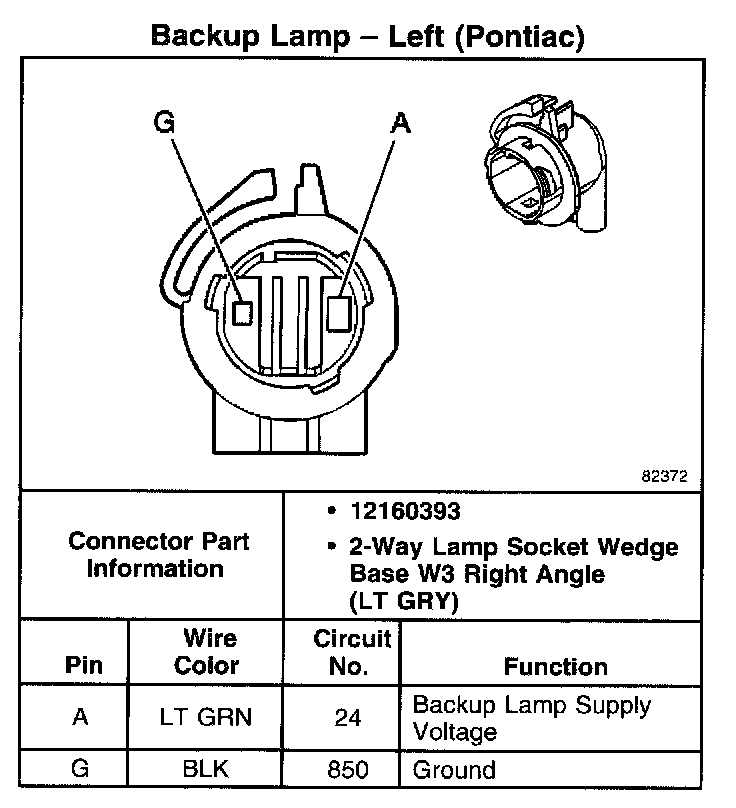

Backup Lamp - Left (Pontiac):
