Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

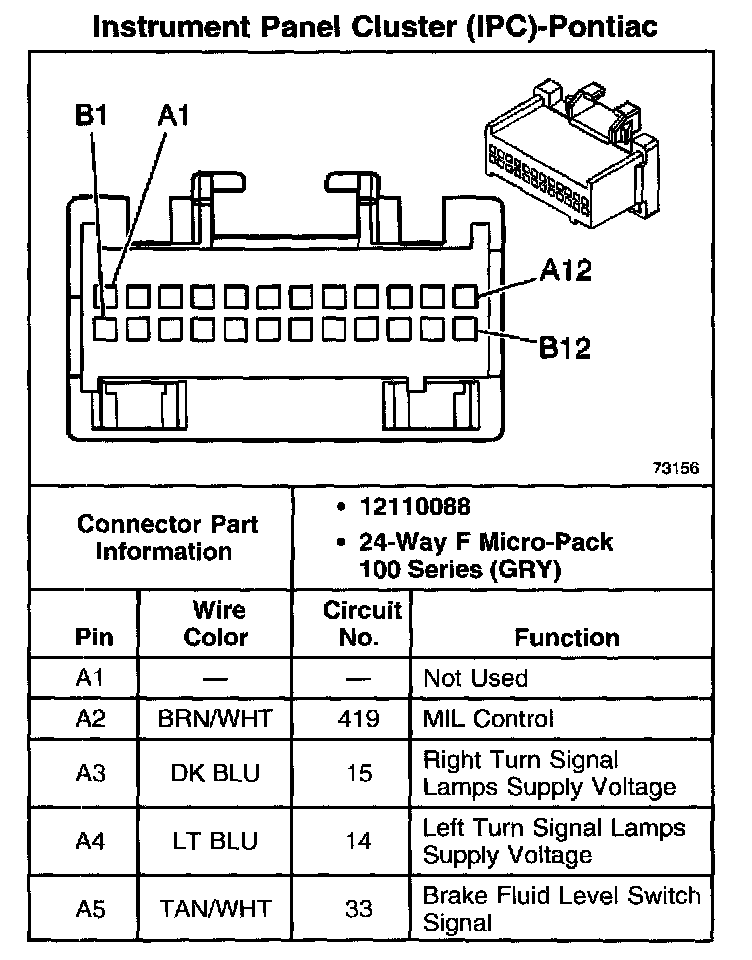

Instrument Panel Cluster (IPC)-Pontiac Part 1:

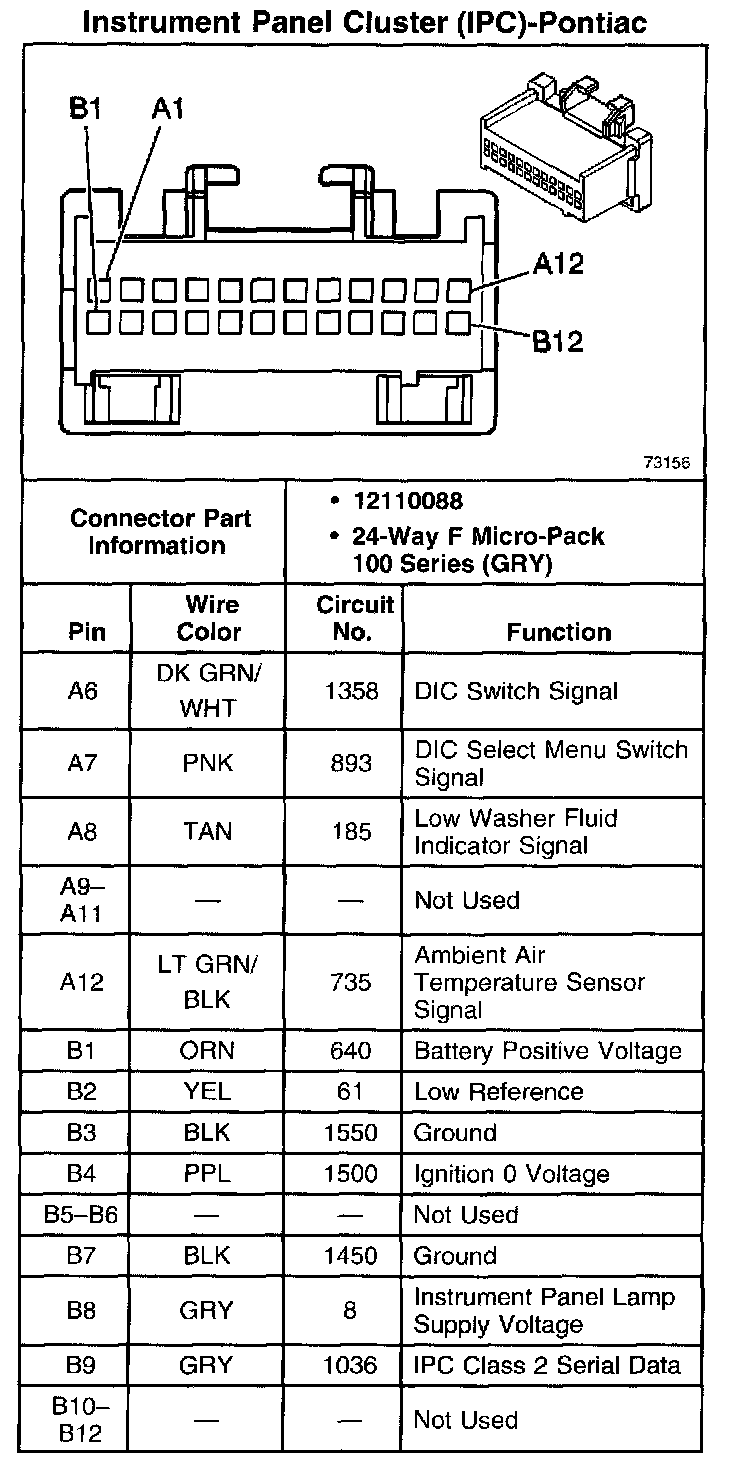

Instrument Panel Cluster (IPC)-Pontiac Part 2:
