Operation CHARM: Car repair manuals for everyone.
Home >> Pontiac >> 2002 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Transmitter

Steering Mounted Controls Transmitter

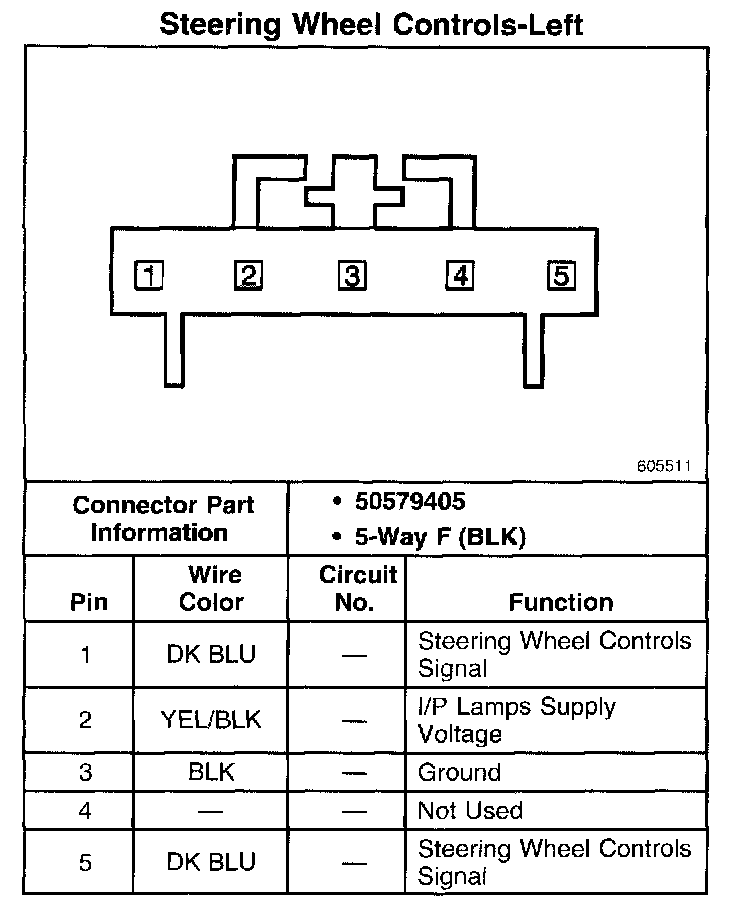

Steering Wheel Controls - Left:

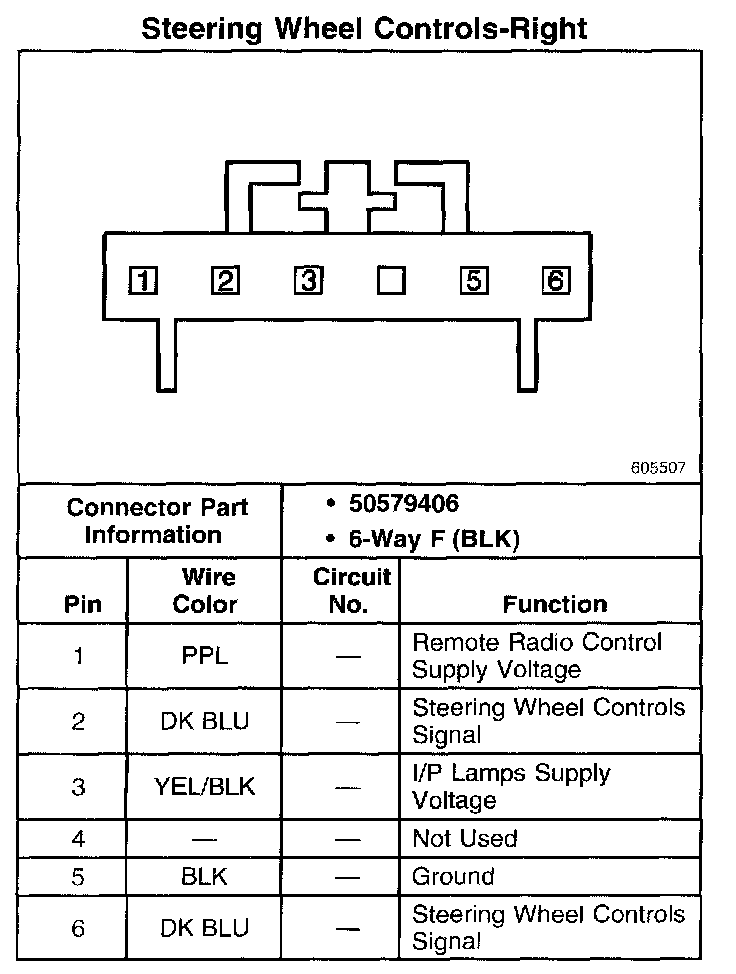

Steering Wheel Controls - Right:
