Home >> Pontiac >> 2002 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors >> Base Mirrors

Base Mirrors

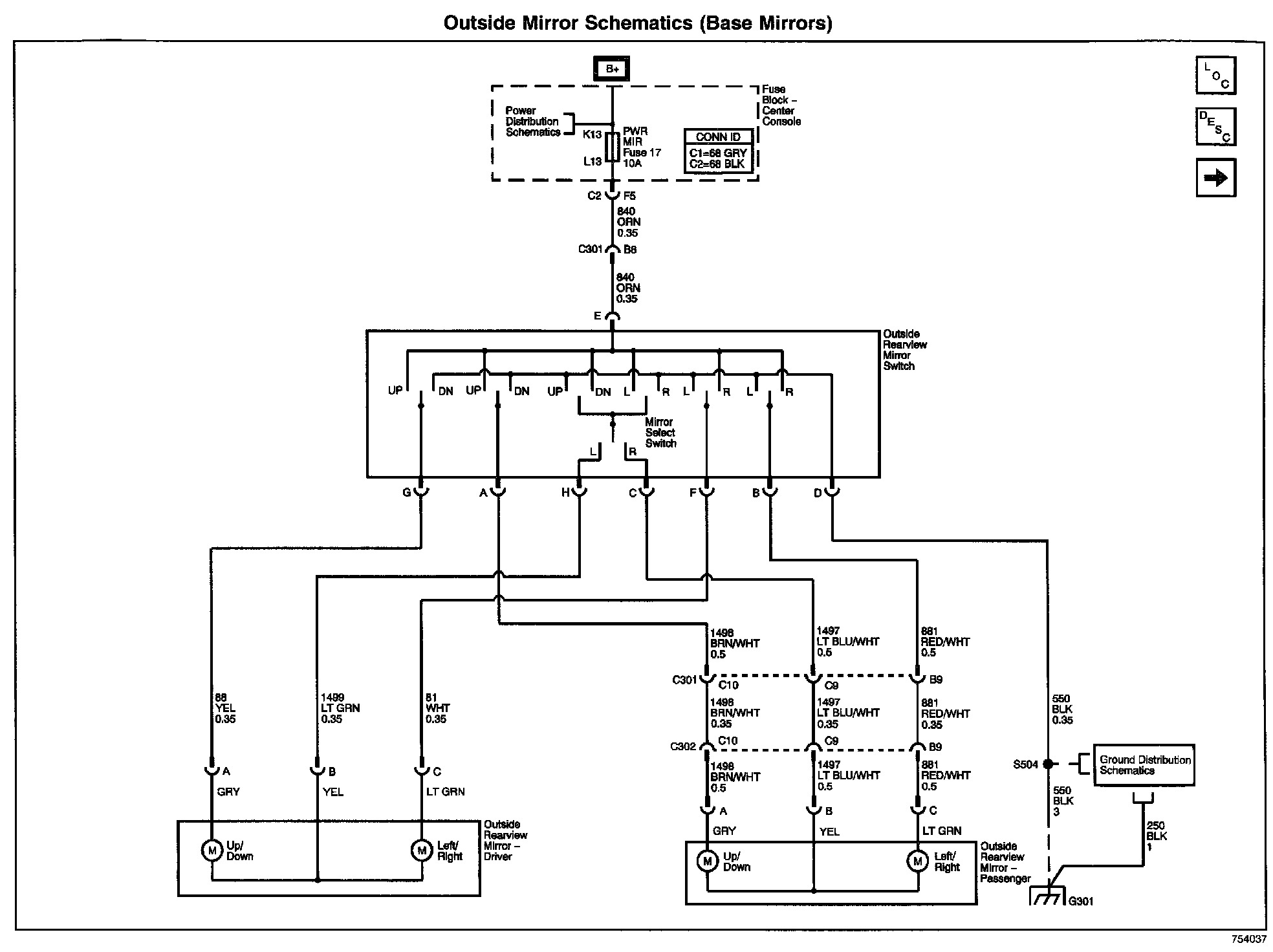

Outside Mirror Schematics: Base Mirrors:
