Pontiac
>>
2002
>>
Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Engine Compartment - LF
Engine Compartment - LF

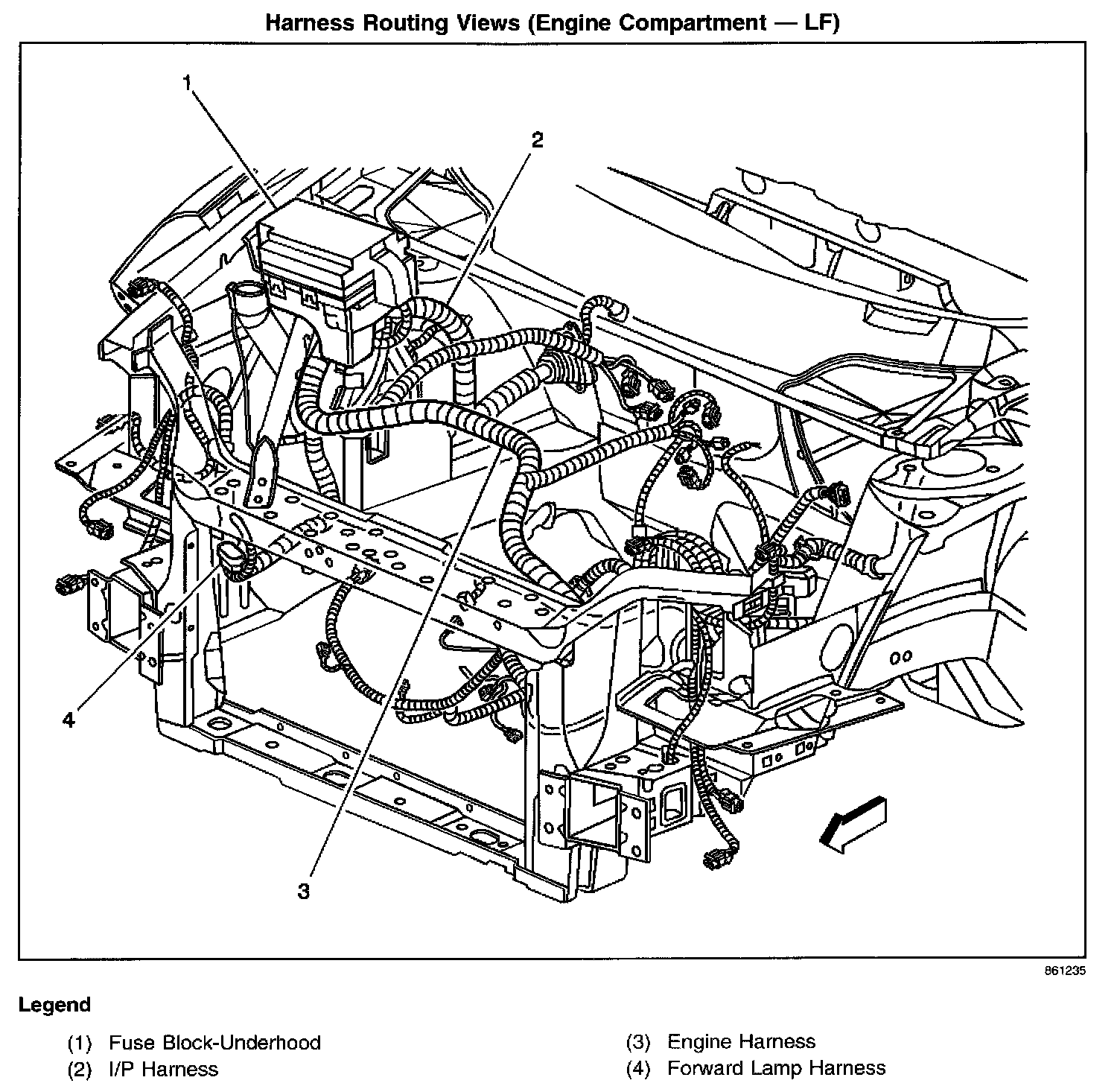

Harness Routing Views (Engine Compartment - LF):
