Splice Locations

Splice

S101 - S125:

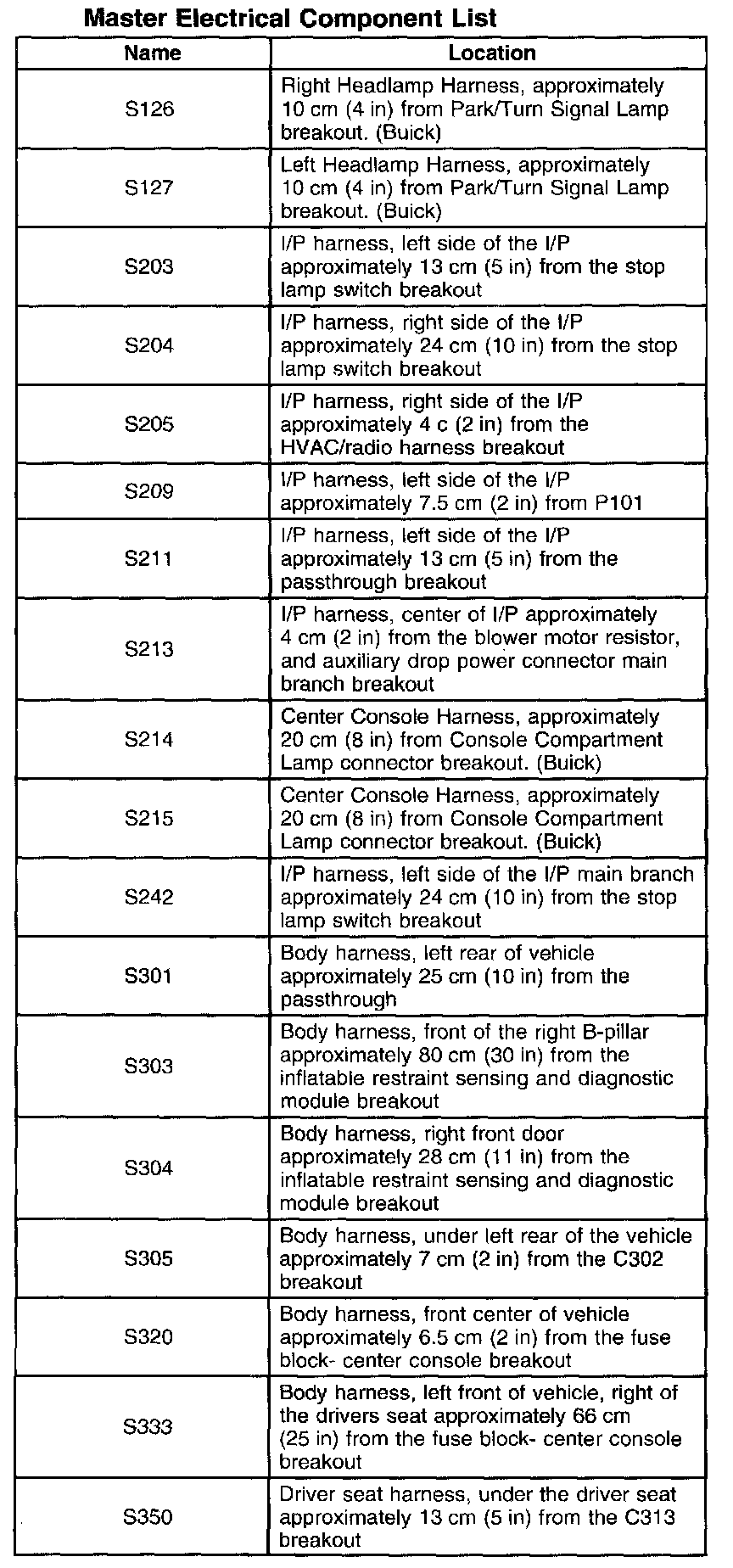

S126 - S350:

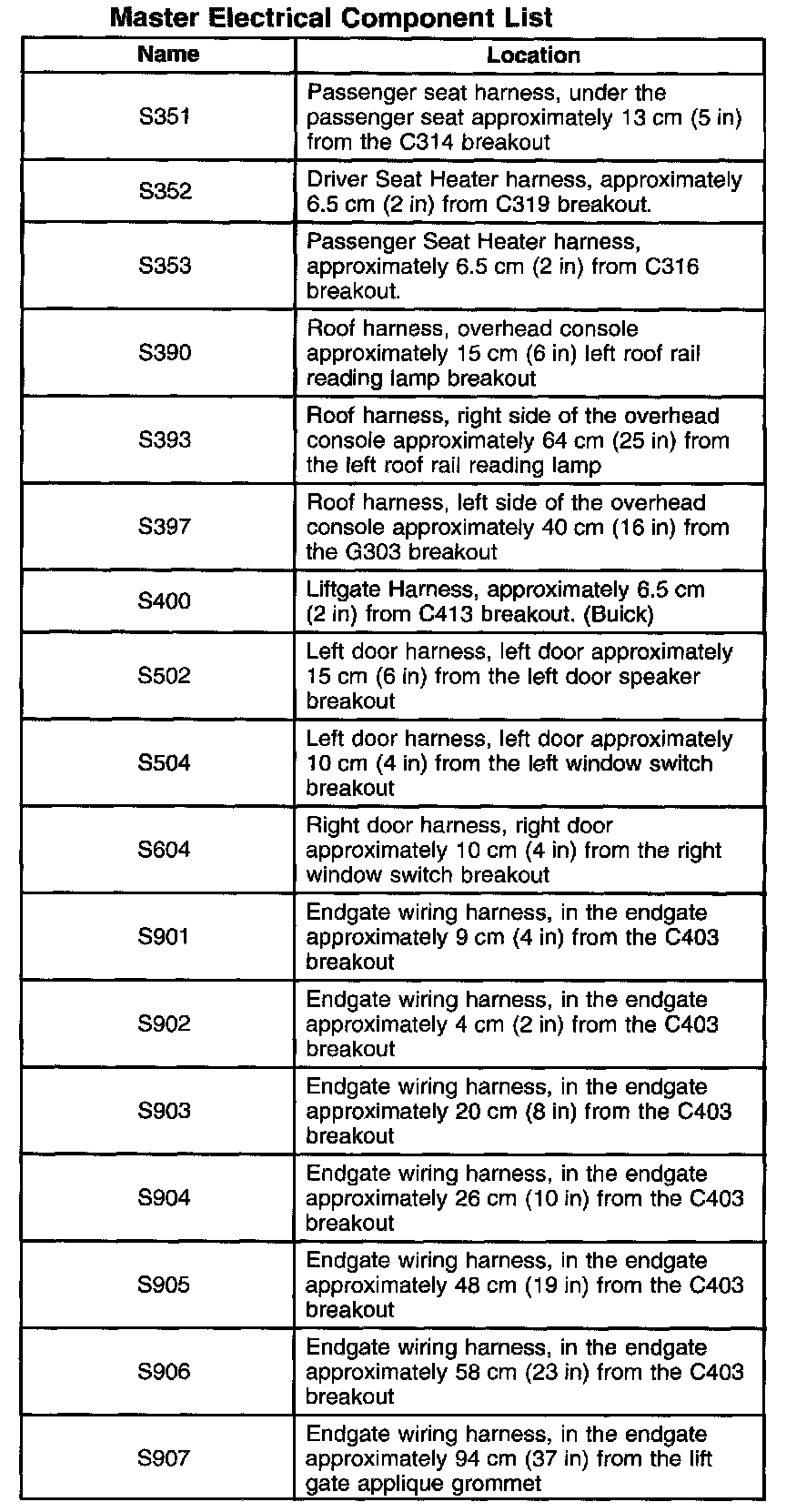

S351 - S907:

Splice Pack

- Splice Pack SP205, Left side of I/P, behind the left side I/P access panel.
- Splice Pack SP206, In the left side of I/P, behind the left side I/P access panel, next to SP205.
- Splice Pack SP215, (U2k and UE1)I/P harness, right side of dash area, above I/P compartment.
- Splice Pack SP250, Behind the I/P compartment, under the I/P module.
- Splice Pack SP315, Inside the console, on the floor underneath the rear air duct.
- Splice Pack SP409, Behind the left rear wheelhouse, under the left rear trim panel.
