Fluid Pump: Service and Repair
Oil Pump ReplacementRemoval Procedure
1. Remove the case side cover.
Notice: Do NOT remove the three bolts which hold the pump together.

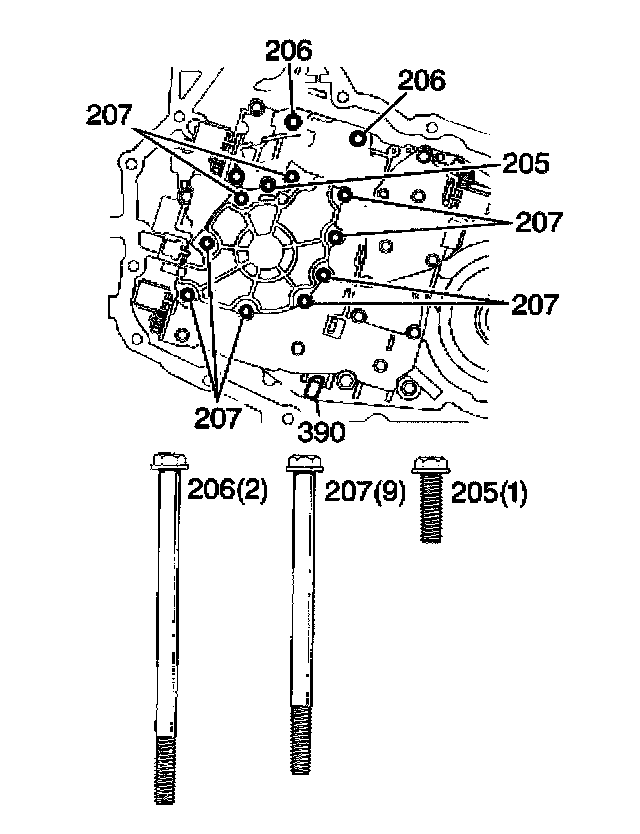

2. Remove the oil pump bolts (205-207).

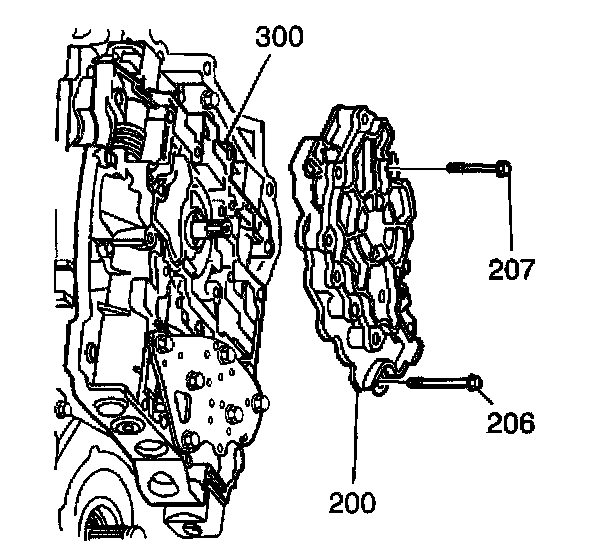

3. Remove the oil pump (200) form the valve body (300).
4. Inspect the oil pump.
Installation Procedure

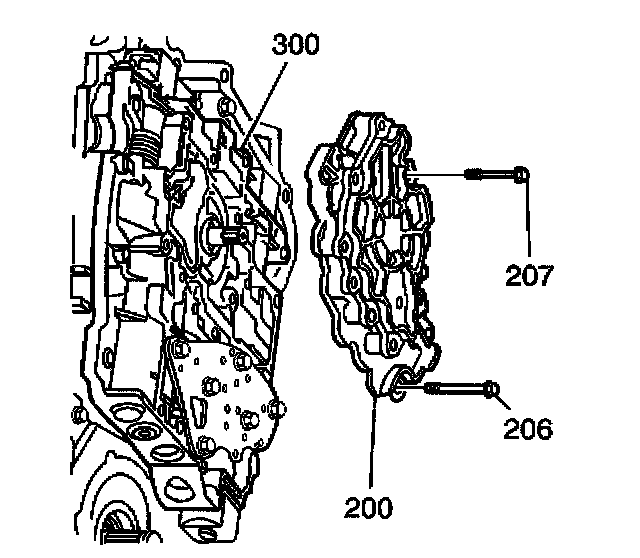

1. Install the oil pump (200) to the valve body (300).
Notice: Refer to Fastener Notice in Service Precautions.

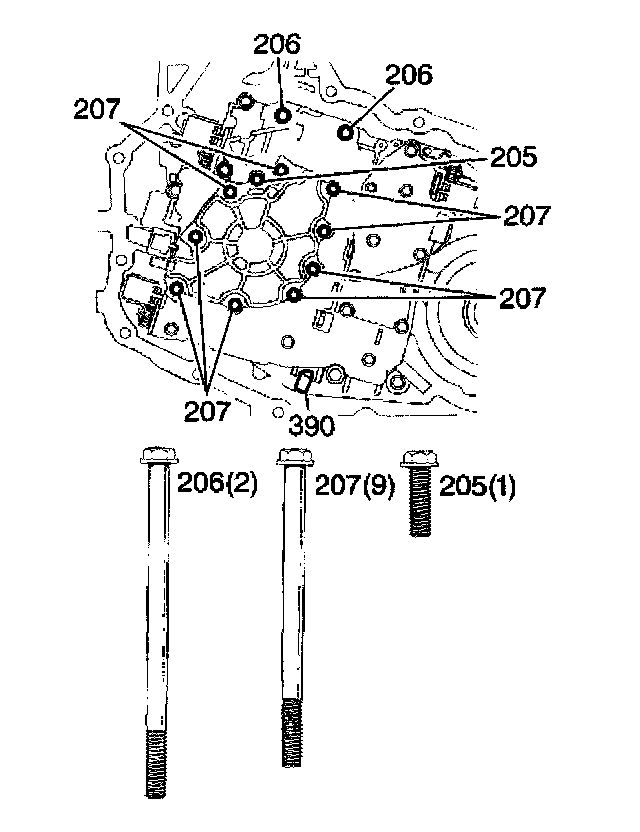

2. Install the oil pump bolts (205-207). Tighten
^ Tighten the M6 X 1.0 X 20 bolt to 8 Nm (70 inch lbs.).
^ Tighten the M6 X 1.0 X 85 bolt to 12 Nm (106 inch lbs.).
^ Tighten the M6 X 1.0 X 95 bolt to 12 Nm (106 inch lbs.).
3. Install the case side cover.
