Compressor Mounting Bracket Replacement
REMOVAL PROCEDUREIMPORTANT: Recovering the refrigerant is not necessary to service the compressor mounting bracket.
1. Disconnect the negative battery cable.
2. Remove the accessory drive belt.
3. Remove the right wheelhouse extension.
4. Remove the lower air deflector.
5. Remove the A/C compressor front mounting nuts.
6. Remove the A/C compressor rear mounting bolt.
7. Remove the A/C compressor from the mounting bracket.

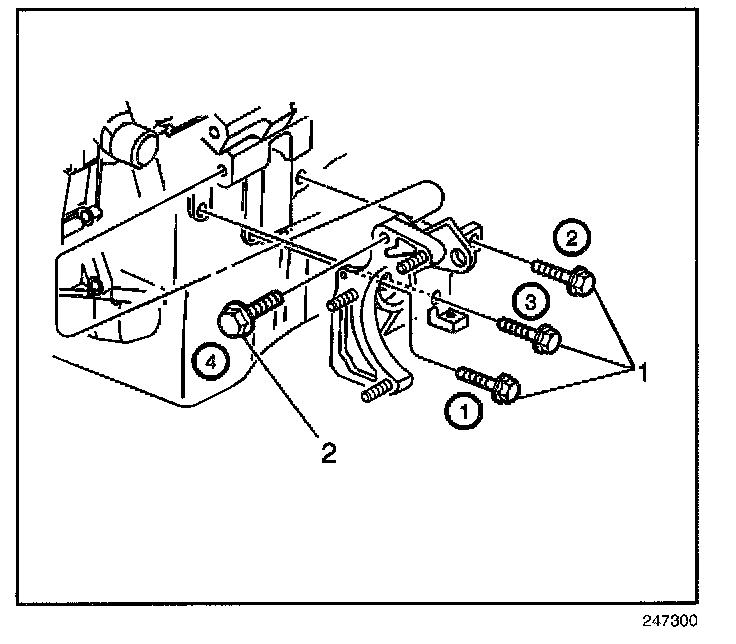

8. Remove the A/C compressor mounting bracket retaining bolts (1,2).
9. Remove the A/C compressor mounting bracket.
INSTALLATION PROCEDURE
1. Install the A/C compressor mounting bracket.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the A/C compressor mounting bracket retaining bolts (1,2).
Tighten
2.1. Tighten the side bracket bolts (1) to 100 N.m (74 lb ft).
2.2. Tighten the front bracket boll (2) to 50 N.m (37 lb ft).
3. Install the A/C compressor.
NOTE: Refer to in Service Precautions.
4. Install the front mounting nuts and the bolt.
Tighten
Tighten the nuts to 50 N.m (37 lb ft).
5. Install the rear bolt to the compressor.
Tighten
Tighten the bolt to 50 N.m (37 lb ft).
6. Install the accessory drive belt.
7. Install the lower air deflector.
8. Install the right wheelhouse extension.
9. Connect the negative battery cable.
