Solar Sensor: Service and Repair

SUNLOAD AND TWILIGHT SENTINEL SENSOR REPLACEMENT

REMOVAL PROCEDURE

1. Remove the defroster grille.

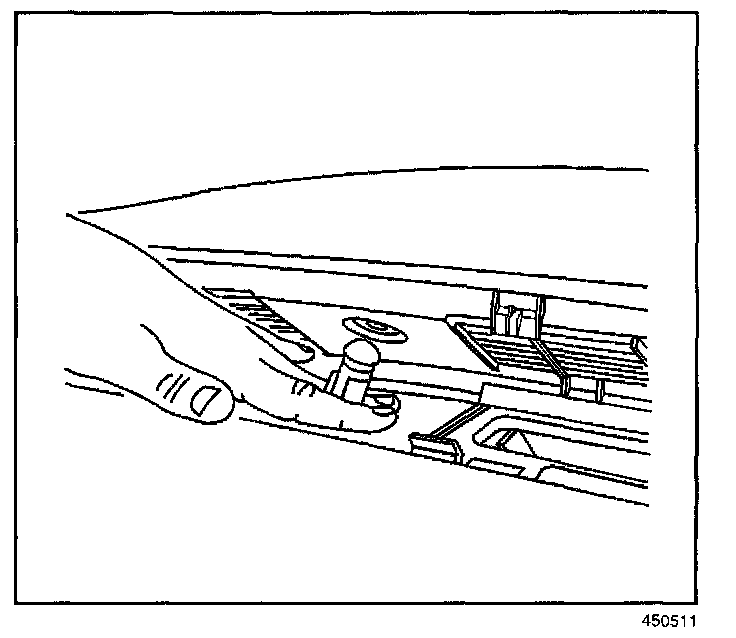

2. Remove the sensor from the defroster grill by twisting 1/4 turn.
3. Disconnect the electrical connector from the sunload sensor.

INSTALLATION PROCEDURE

1. Connect the electrical connector to the sunload sensor.
2. Install the sensor to the defroster grill by twisting 1/4 turn.
3. Install the defroster grille.
