HVAC Control Lamp Bulb Wiring Harness Replacement

REMOVAL PROCEDURE

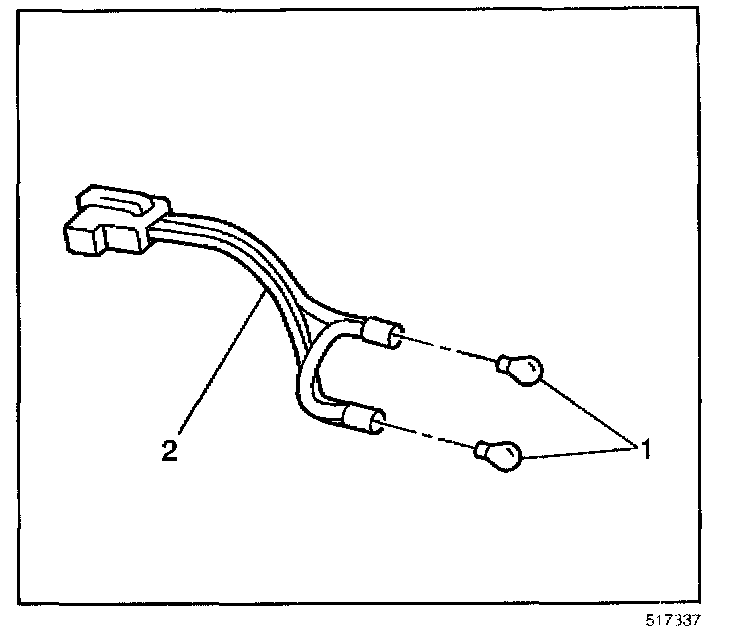

1. Remove the HVAC control assembly.
2. Remove the HVAC control assembly wiring harness (2).
3. Remove the control lamp bulbs from the control lamp harness (2).

INSTALLATION PROCEDURE




1. Install the control lamp bulbs to the HVAC control assembly lamp harness (2).
2. Install the HVAC control assembly wiring harness (2).
3. Install the HVAC control assembly.
