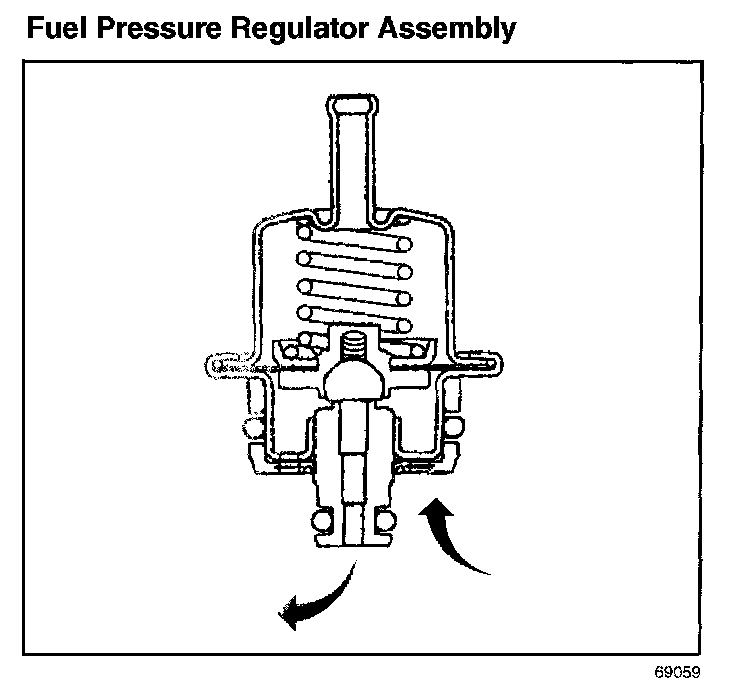

Fuel Pressure Regulator Assembly

Fuel Pressure Regulator Assembly:

The fuel pressure regulator is a diaphragm relief valve. The diaphragm has fuel pressure on one side and regulator spring pressure and intake manifold vacuum on the other side. The fuel pressure regulator maintains a constant pressure differential across the injectors at all times.
