Compressor Clutch Relay: Service and Repair

COMPRESSOR RELAY REPLACEMENT

REMOVAL PROCEDURE

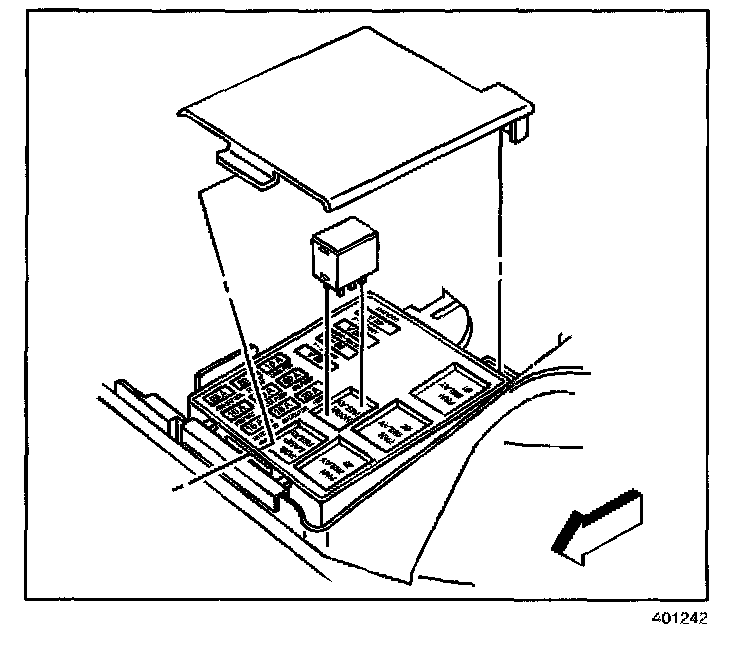

1. Remove the electrical center cover from the number 2 Under hood electrical center.
2. Remove the A/C compressor relay. Refer to Electrical Center Identification Views in Diagnostic Aids.

INSTALLATION PROCEDURE




1. Install the A/C compressor relay. Refer to Electrical Center Identification Views in Diagnostic Aids.
2. Install the electrical center cover on the number 2 under hood electrical center.
