Generator Bracket Replacement (Front)

REMOVAL PROCEDURE

1. Remove the accessory drive belt idler pulley.
2. Remove the generator.
3. Remove the generator bracket bolt and bracket.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

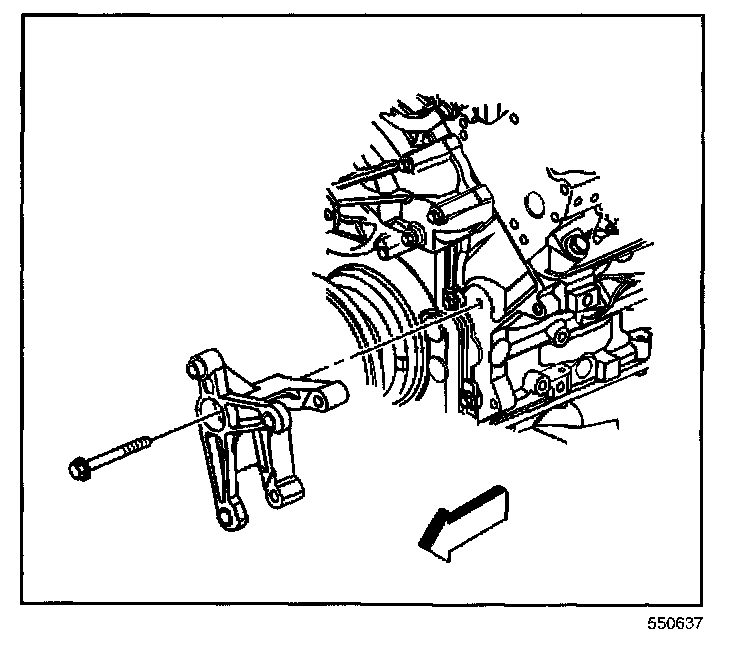

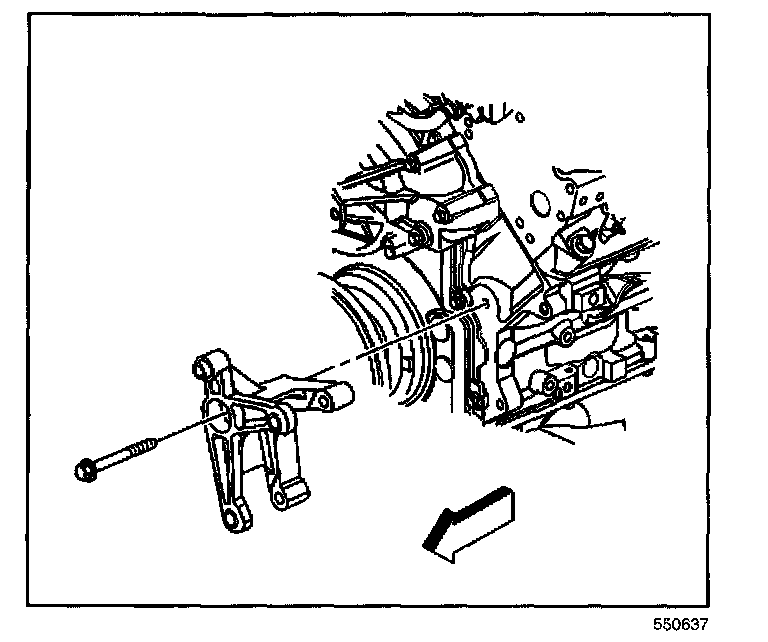

1. Install the generator bracket and bolt.

Tighten
Tighten the generator bracket bolt to 50 N.m (37 lb ft).

2. Install the generator.
3. Install the accessory drive belt idler pulley.
